Vacuum Plate Lifters-Heavy Duty Transfer Cart & AGV/RGV Systems

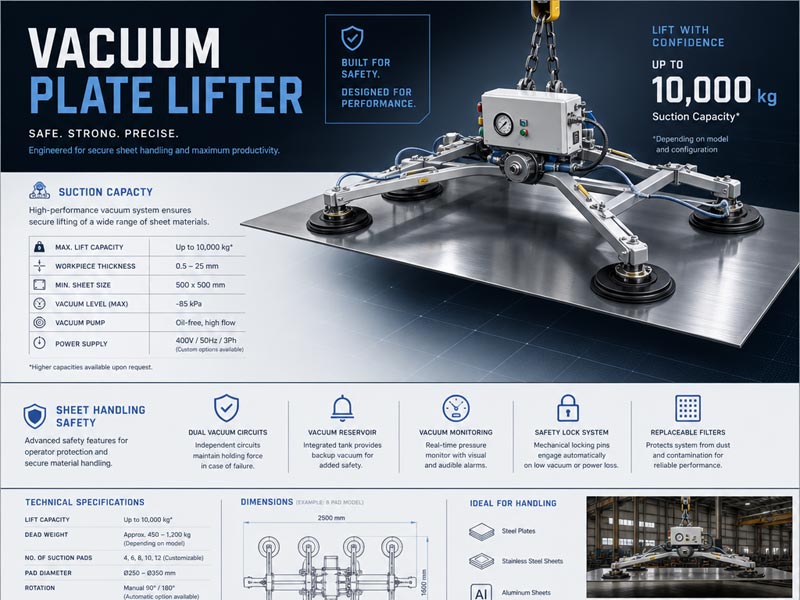

Vacuum plate lifters are specialized vacuum lifting tools for sheet metal, relying on negative pressure suction cups to lift steel plates, aluminum plates, glass, and stone. Equipped with an energy storage tank and audible and visual alarms, they feature power failure protection, adjustable suction cup spacing, and adaptability to various sheet metal sizes. They can be used with overhead cranes and gantry cranes, and are widely used in laser cutting, metal processing, and the construction industry. Custom load and size specifications are available.

Product Videos

Parameters	Technical Specifications
Rated load (kg)	100 – 2000 (can be expanded depending on the number of suction cups)
Number of suction cups	2, 4, 6, 8, 12 (multiple distribution points)
Suction cup diameter (mm)	Φ200 – Φ400 (wear-resistant silicone material)
Rotate by (°)	0 – 90 (automatic rotation) / 0 – 180 (optional)
Rotation degree (°)	0-90 / 0-360 Manual Lock
Source of motivation	Oil-free vacuum pump / External power supply
Vacuum range (kPa)	-60 – -85 (High negative pressure stability)
Accumulator time (min)	≥ 10 (Adsorption time after power failure)
Alarm system	Abnormal pressure audible and visual alarm (high pressure)
Filtration accuracy (μm)	5 (Dust filter protects the pump body)
Applicable Materials	Glass, steel plate, aluminum plate, precast concrete slab
Control	Hand-operated integrated valve / Wireless remote control
Structural length (mm)	1200 – 3500 (Main beam is telescopic)
Total power consumption (kW)	0.35 – 1.5
Safety factor	4.0 (Single suction cup pull-out test)

Power Failure Safety System: Equipped with a large-capacity vacuum accumulator, it can maintain the load from falling for more than 10 minutes even in the event of an unexpected power outage.

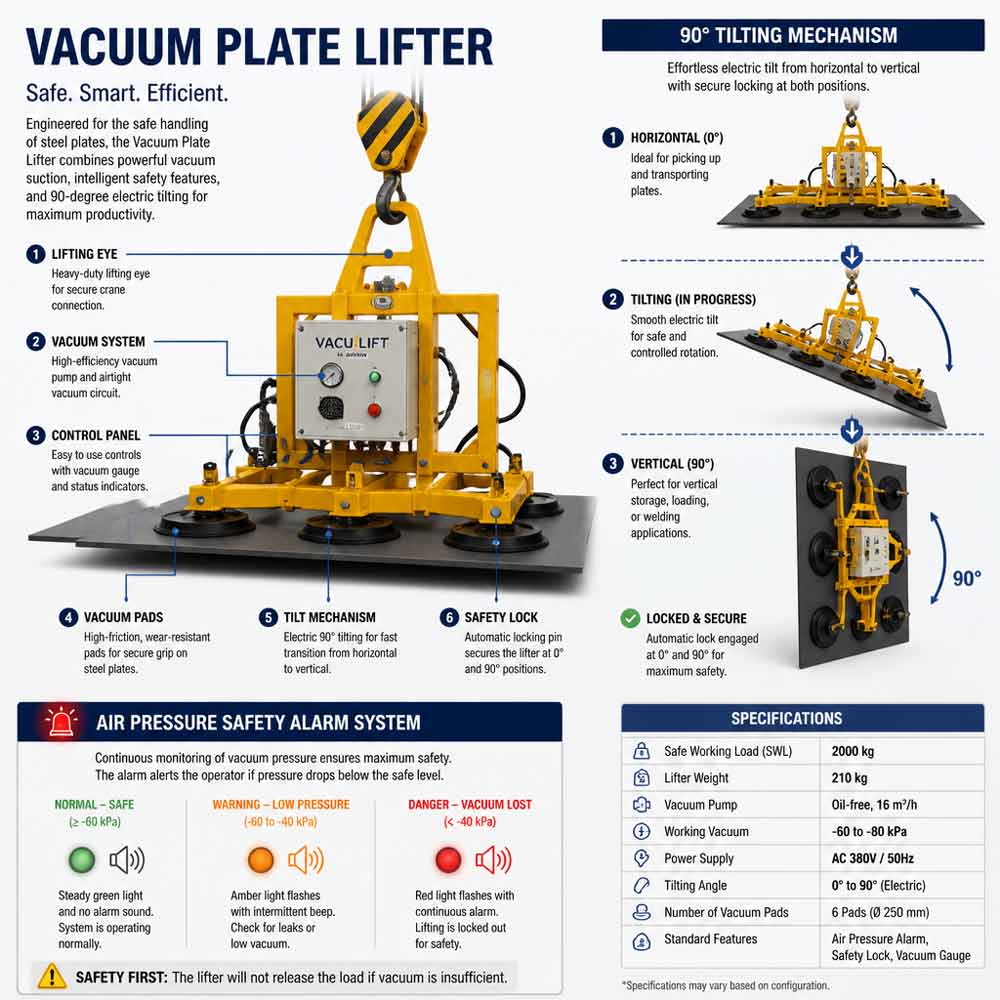

90-Degree Automatic Tilting: Actuates smoothly between vertical and horizontal positions via an automatic mechanism, facilitating shelving and stacking.

Non-Destructive Adhesion Technology: Utilizes advanced high-grade silicone suction cups to ensure no scratches or oil stains are left on the surface of glass or coated panels.

Self-adaptive main beam structure: Both the main beam and frame of the suction cup frame are telescopic and adjustable, flexibly adapting to the transportation of plates of different lengths and widths.

Dual-loop power system: Critical loads employ dual-loop independent control, significantly improving safety in critical processes.

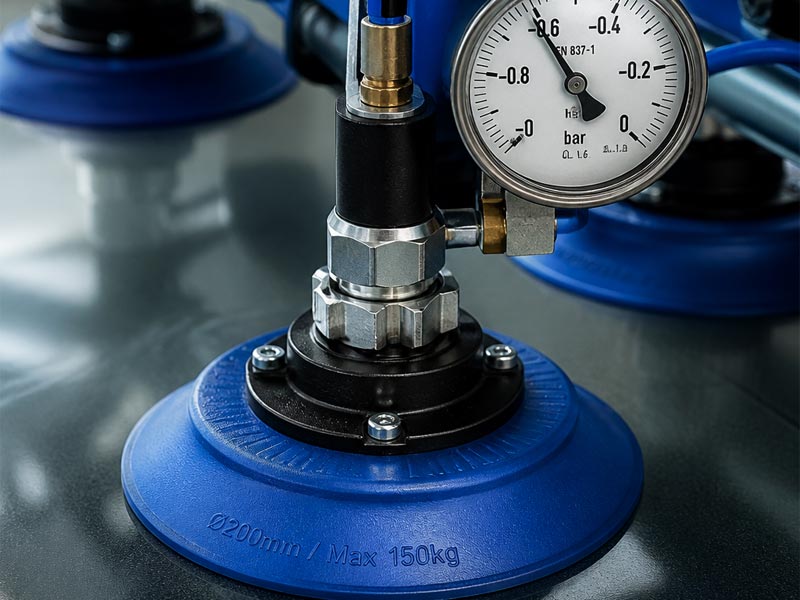

Real-time vacuum monitoring: A visual pressure gauge and digital sensor work in tandem; when the vacuum level drops below 60%, an audible and visual alarm is automatically triggered.

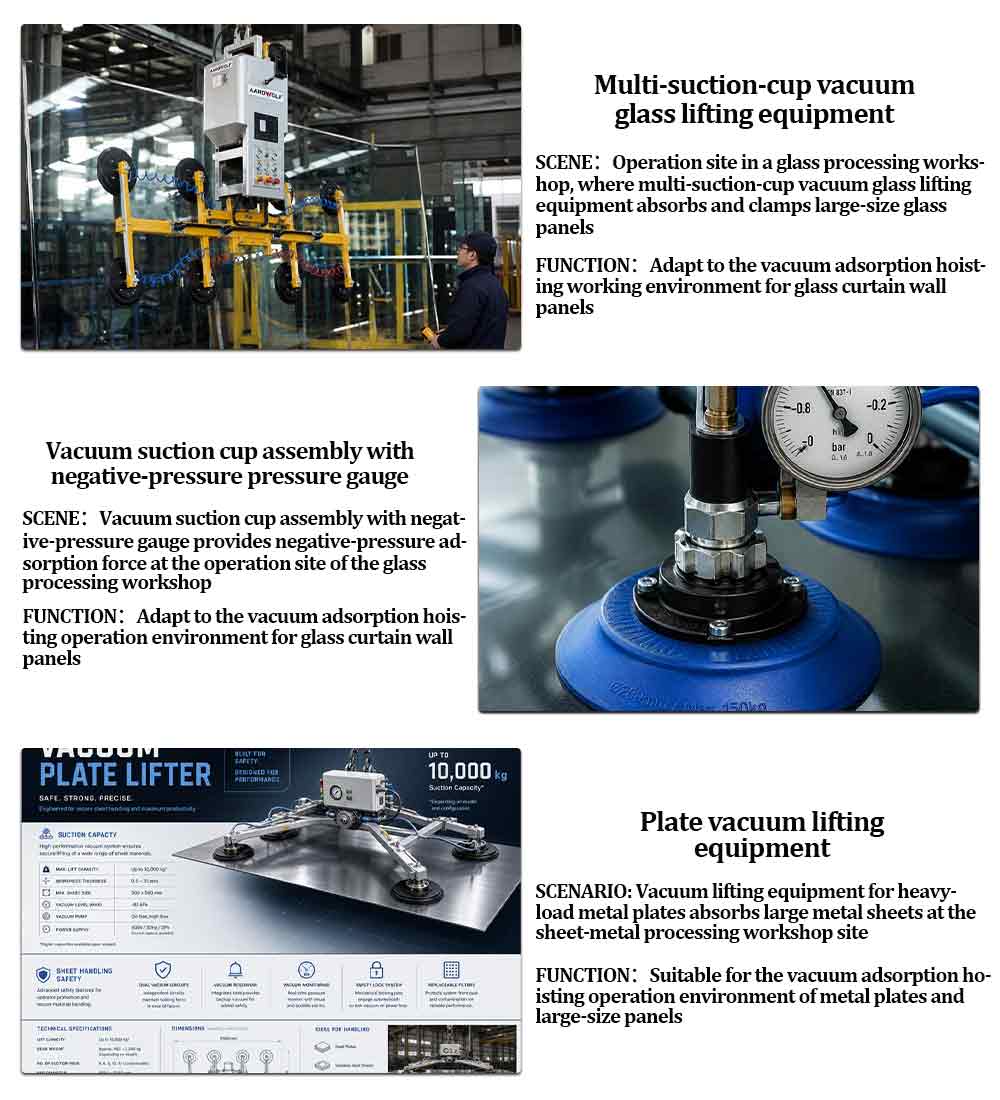

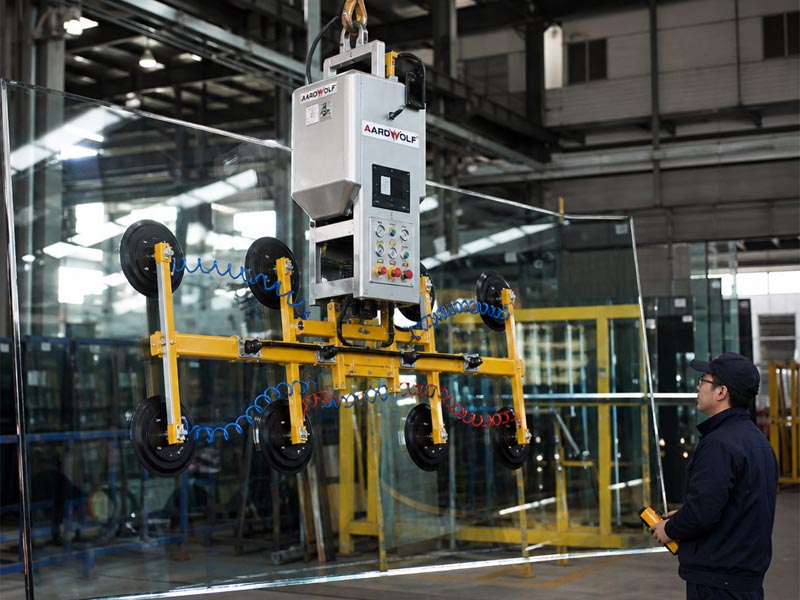

Large-scale building substrate relocation and cutting line loading in the glass deep processing industry.

Bulk unpacking and precise loading of thin metal sheets at the front end of laser cutting machines.

Indoor demolding and transfer of finished components in precast concrete floor slabs.

Adsorption handling and positioning assembly of vehicle body panels in automobile manufacturing production lines.

Horizontal transfer and vertical storage conversion of large-format aluminum sheets in aluminum processing.

Rapid sorting and stacking of large-format glass substrates in photovoltaic module production.

Vacuum Plate Lifters
