Hydraulic lifting platforms (scissor lifts) achieve vertical lifting by using hydraulic cylinders to drive a mechanical scissor mechanism. They are not only efficient tools for auxiliary loading and unloading, but also key equipment in production lines for guiding and connecting different heights. Widely used in factories, warehouses, and workshops for goods transfer and equipment maintenance, they support customization of platform size, lifting height, and load capacity.

Product Videos

Parameters	Technical Specifications
Rated load (T)	0.5 – 50 (Heavy-duty models can be customized)
Maximum lift (mm)	1000 – 12000 (Multi-level scissor lift optional)
Countertop dimensions (L*W, mm)	2000 * 1500 (Customizable to fit the space)
Minimum thickness (mm)	250 – 600 (depending on the model)
Lifting/lowering time (s)	30 – 90 (hydraulic flow rate controllable)
Motor power (kW)	1.5 – 15 (hydraulic pump station power)
Hydraulic system pressure (MPa)	12 – 20
Hydraulic cylinder type	Precision-ground heavy-duty hydraulic cylinder (with explosion-proof valve)
Material Structure	High-strength manganese steel rectangular tube structure
Table processing	Powder coating or spray painting, anti-slip pattern on the table
Control power supply (V)	AC 220V/380V (DC optional)
Safety valve configuration	Overflow valve, emergency descent valve, explosion-proof valve
Fall protection	Physical security edge / Infrared security skirt
Scissor layer	Single-forked / Double-forked / Triple-forked and above
Continuous work cycle (times/hour)	≥ 10

Heavy-duty scissor lift structure: Utilizing high-strength manganese steel rectangular tubing, it provides extremely high rigidity and minimal sway during vertical lifting.

Hydraulic explosion-proof protection: In the event of a hydraulic pipe rupture, the explosion-proof valve locks the pressure, causing the platform to descend slowly and preventing the load from falling.

Safety skirt: An optional aluminum alloy safety frame is available under the platform; it stops descent upon contact with foreign objects, protecting personnel safety.

Emergency descent valve device: In the event of a power outage, the platform can be safely and smoothly lowered back to its original position via a manual emergency return valve.

Low-noise pump station system: Integrated hydraulic station design ensures smooth operation and extremely low noise, suitable for indoor office and production environments.

High-precision leveling and alignment: Equipped with high-precision limit sensors to ensure precise leveling of the lifting platform with the production line or truck floor.

Material lifting and guiding connections between different conveyor levels in industrial automated production lines.

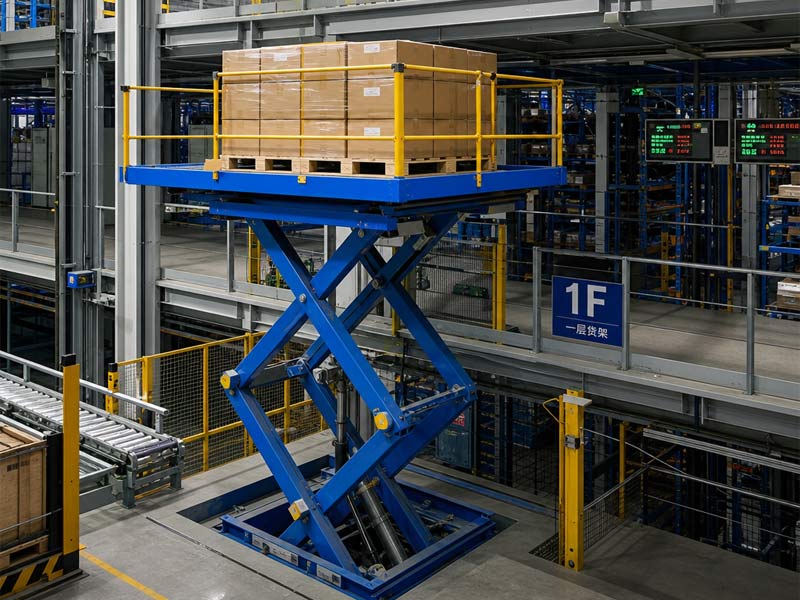

Used in modern logistics warehouses to smoothly lift goods from the ground to loading/unloading platforms.

In automobile assembly lines, as a hydraulic tilting or lifting station, working with AGVs to complete chassis assembly.

Used in stage performance venues for vertical transfer and height adjustment of equipment, musical instruments, or performers.

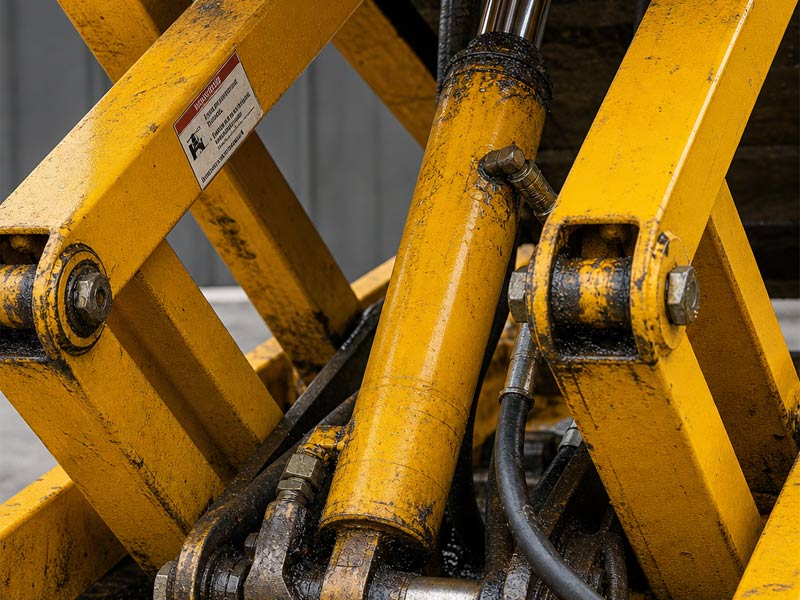

In manufacturing, used as an adjustable workbench for mold changing and heavy component installation.

Used as a simple freight elevator to achieve low-frequency vertical transfer of small, lightweight goods between floors.
