Trackless Transfer Cart-Henan Universal Industrial Equipment Co.,Ltd.

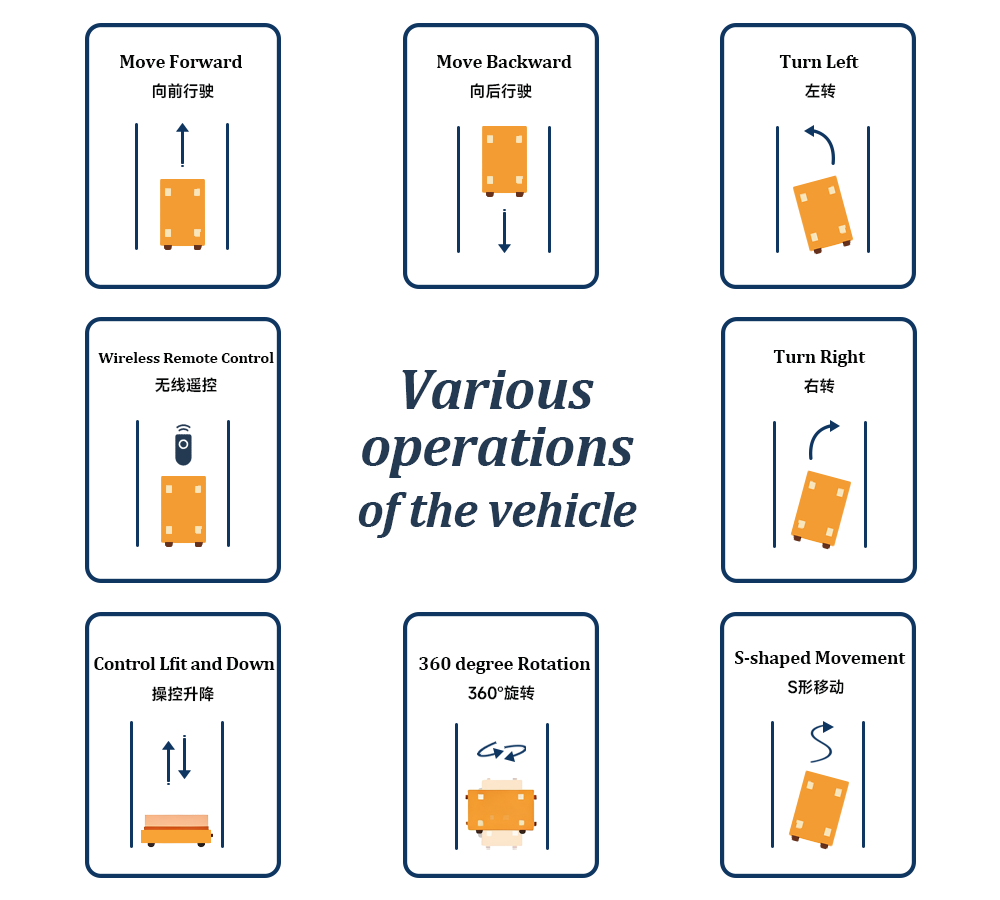

Trackless transport vehicles (DWPs) are powered by batteries or lithium batteries. They can move flexibly on the ground, moving forward, backward, and turning. The vehicles are equipped with safety protection devices, audible alarms, optional scanning radar, and automatic pedestrian parking. Various tools can be mounted on the workbench, and the vehicles can be lifted, rolled, and fitted with V-frames.

Suitable for various workshop surfaces, they can be divided into three types based on their steering method: Stationary rotating type: suitable for small tonnage vehicles with a reasonable workbench layout, flexible operation, and limited space; Hydraulic steering type: not limited by tonnage, with advantages such as smooth operation, good straight-line driving performance, strong climbing ability, and high load-bearing capacity; All-around mobile type: the vehicle can move in any direction, including forward, backward, left, and right.

Product Videos

Model	DWP
Load Capacity (T)	1-5	5-10	10-20	20-30	30-40	40-50	50-60	60-80	80-100	100-300
Maximum Impact Load (T)	6	12	24	35	50	64	72	100	120	120-340
Overall Dimensions (mm)	4000*2000					5000*2500				6000*3000
Overall Height (mm)	500	500	650	750	800	900	1100	1200	1300	1500
Wheel Size (mm)	300	350	400	450	500	600	650	700	700	900
Motor Power (kW)	2	3	4	5	7	9	12	15	20	40
Battery Capacity (Ah)	200		260		300/400		500	600	800	1200
Braking Method	Electromagnetic brake
Operating Speed(m/min)	5-30
Ground Clearance (mm)	50-100
Wheel Material	Polyurethane/Rubber
Balance Adjustment	Mechanical adjustment

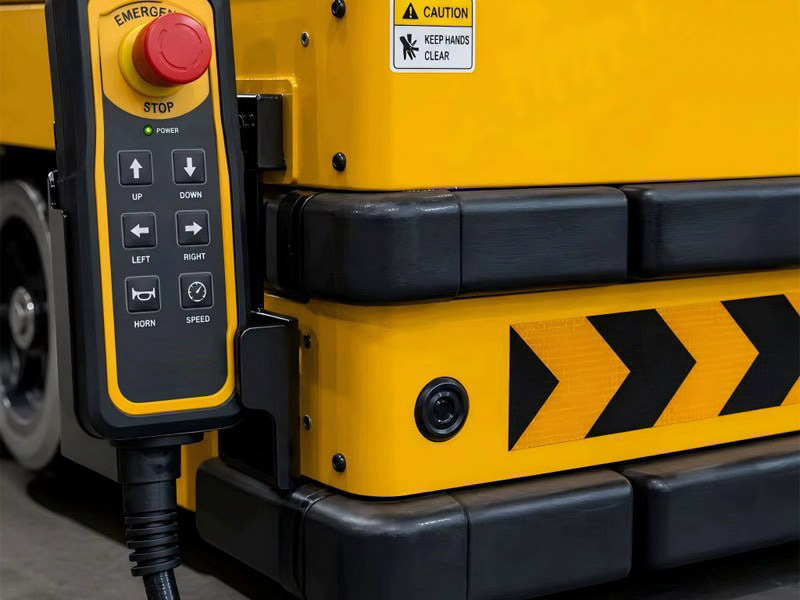

Operating Method	Wireless remote control + car handle
Battery Type	Hydrochloric acid battery / Free maintenance battery / Lithium battery (optional)
Safety Protection	Infrared human detection stop/sector scanning radar (optional)
Platform Requirements	Add rubber matting/add V-shaped frame/table lifting/side tilting/add tooling rack (non-standard customization)

Trackless Free Movement: No tracks required, flexible movement, saving space costs.

Powerful Load Capacity: Maximum load capacity up to 340 tons, meeting the needs of large-volume material transportation.

Intelligent Navigation System: Precise positioning and automatic route planning, reducing operational burden.

Green and Energy-Saving: Uses high-performance lithium batteries, long battery life, and convenient charging.

Safe and Stable: Multiple safety protection mechanisms ensure the safety of transportation and operators.

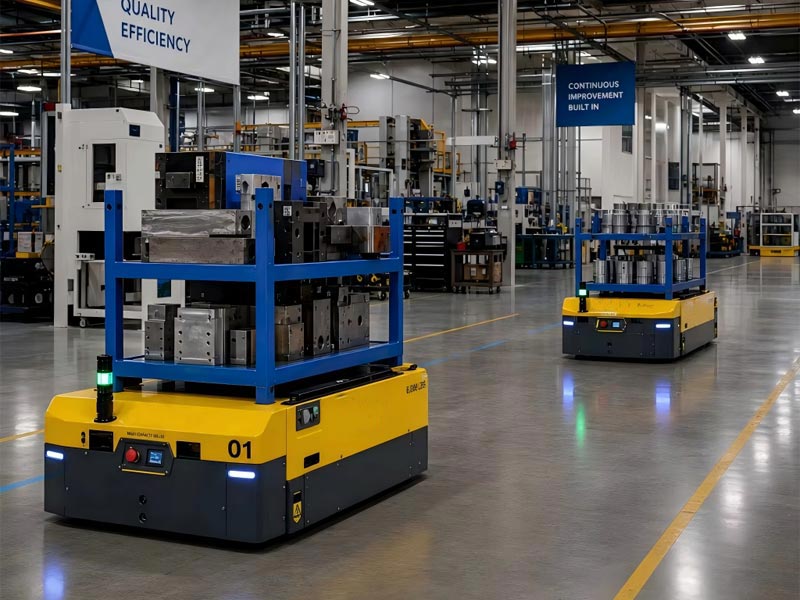

It is suitable for various environments such as manufacturing plants, logistics warehouses, and ports, enabling efficient material handling and logistics transportation.

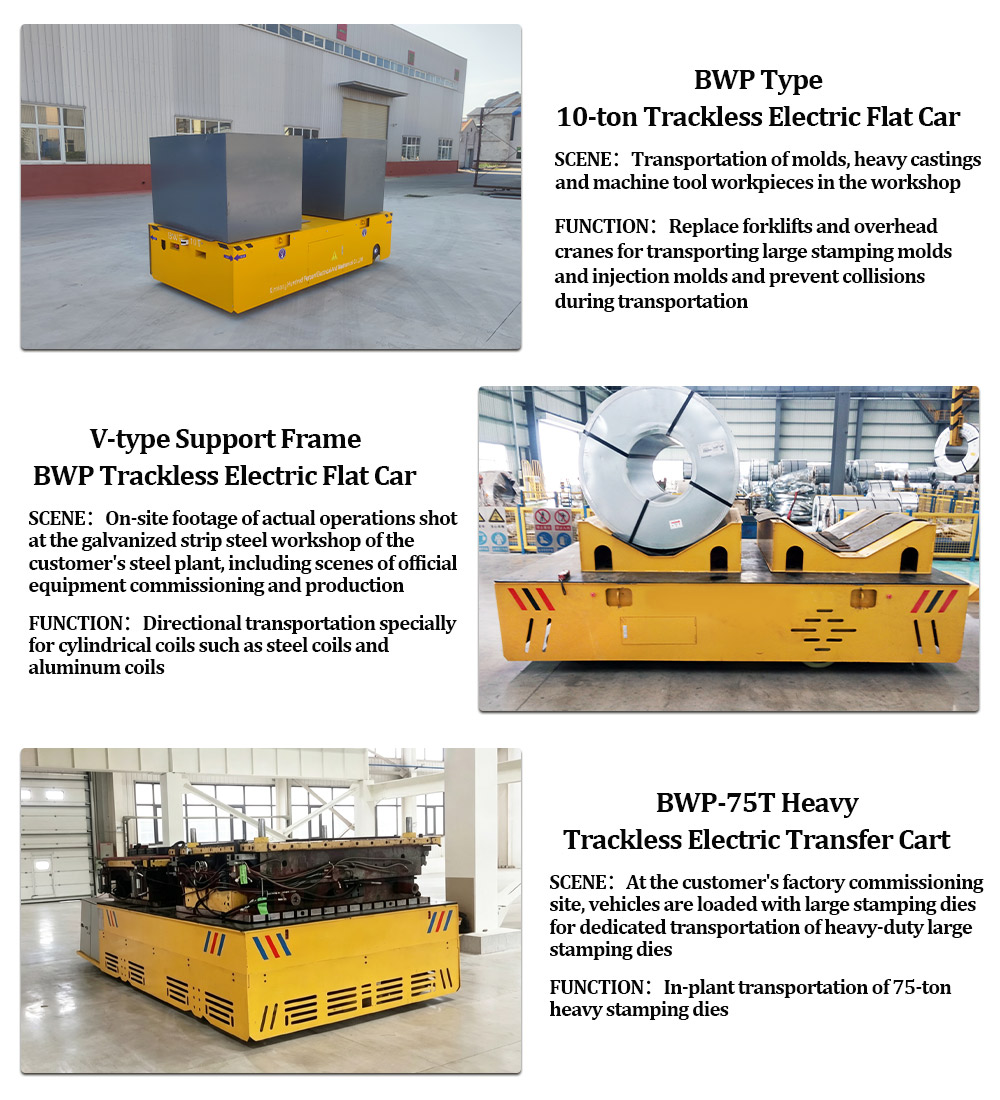

Steel and Metallurgy Industry: Easily move heavy steel coils, billets, and scrap drums.

Automotive and Mold Manufacturing Industry: Zero-turning-radius trolleys maximize your site space.

Energy and Heavy Equipment: Seamlessly move oversized components such as wind turbine blades, large transformers, and gas turbines.

Professional and Paint Shops: Explosion-proof configuration ensures safe operation in paint booths and sandblasting rooms.

Load Capacity:	1-300 (T)
Maximum Impact Load:	6-340 (T)
Battery Capacity:	200-1200 (Ah)
Operating Speed:	5-30 (m/min)
Operation Method:	Wireless Remote Control + Onboard Handle
Battery Type:	Hydrochloric Acid Battery/Lithium Battery
Safety Protection:	Infrared Person Detection Stop/Fan-Shaped Scanning Radar
Table Requirements:	Rubber Sheet/V-Shaped Frame/Table Lifting/Side Tilting/Tooling Rack
Rotation Method:	360° In-Situ Rotation
Customization:	Custom production available, including additional components, etc.

Trackless Transfer Cart
