Coil‑Specific Transfer Carts
Coil‑Specific Transfer Carts
| Rated Load Capacity (T) | 2 – 200 |
| Tabletop Dimensions (mm) | 3000 * 2000 (Customized to mold size) |
| Minimum Tabletop Height (mm) | 450 (Ultra-low chassis design) |
| Hydraulic Lifting Stroke (mm) | 0 – 200 (Optional, for precision alignment) |
| Positioning Accuracy (mm) | ±5 (Laser ranging and positioning) |
| Operating Speed (m/min) | 0 – 20 (Smooth start and operation) |
| Steering Mode | Trackless omnidirectional steering (360-degree flexible movement) |
| Motor Type | DC brushless drive motor |

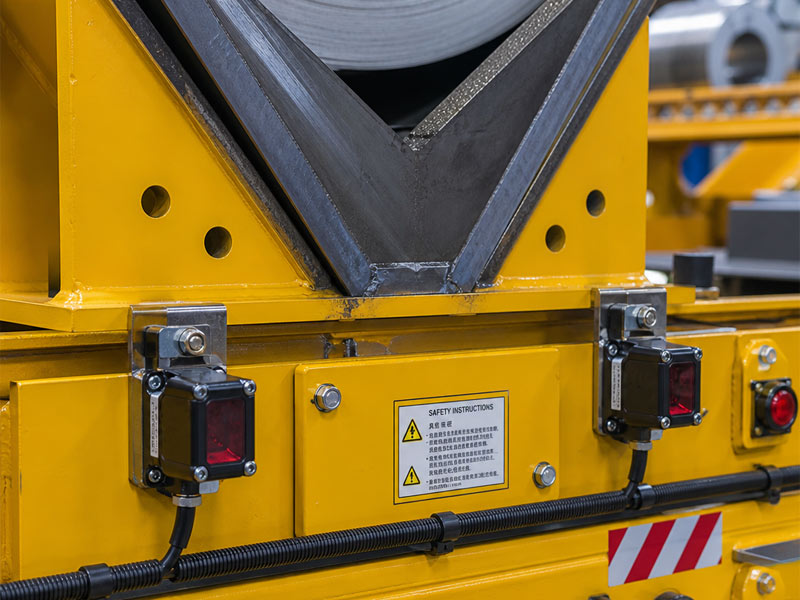

| Safety Protection | All-around infrared obstacle avoidance + edge pressure strips |
| Tabletop Material | High wear-resistant steel plate (optional rubber anti-slip mat) |
E-mail: marketing@uweni.com
Phone / WhatsApp / WeChat: +8617703815878
How can we help you?
Our powerful design team is capable of undertaking the design of industrial equipment, and our products are widely used in manufacturing, energy, metallurgy, coal, mechanical and electrical, heavy industry, shipbuilding, light industry and other fields.

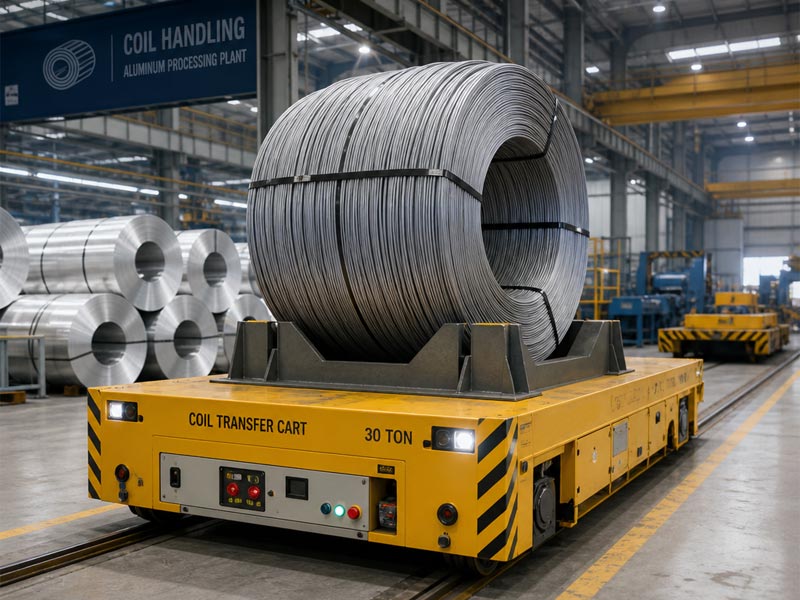

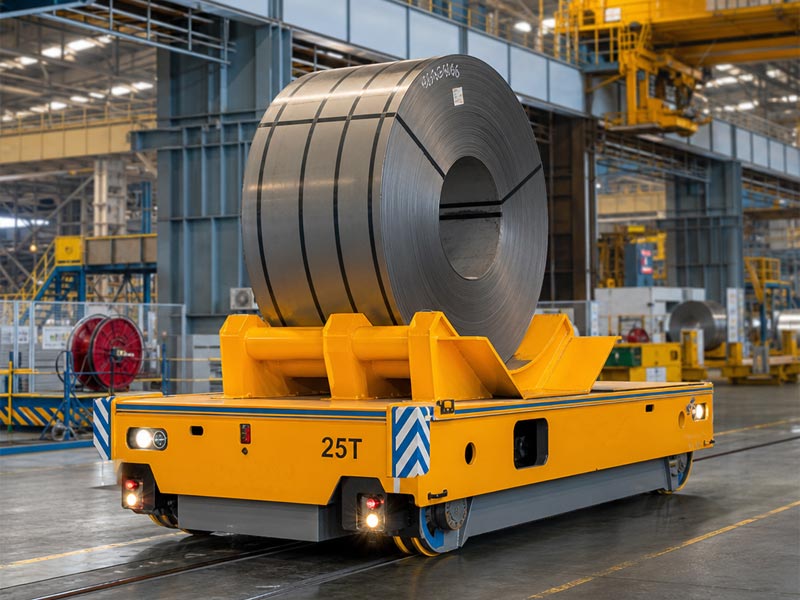

CONTACT USThe coil transport vehicle is an automated transport platform specifically designed for heavy-duty coiled materials (such as steel coils, aluminum coils, and cable coils). A custom-designed V-shaped (or U-shaped) frame ensures the stability of the material and prevents rolling or deviation during start-up or braking. It is mainly used for the turnover of cold-rolled/hot-rolled coils in the steel industry, the transfer of extra-large cable reels in the cable industry, and the conveying of raw materials in the aluminum foil and paper industries.
