Towed Cable Rail Transfer Cart-Henan Universal Industrial Equipment Co.,Ltd.

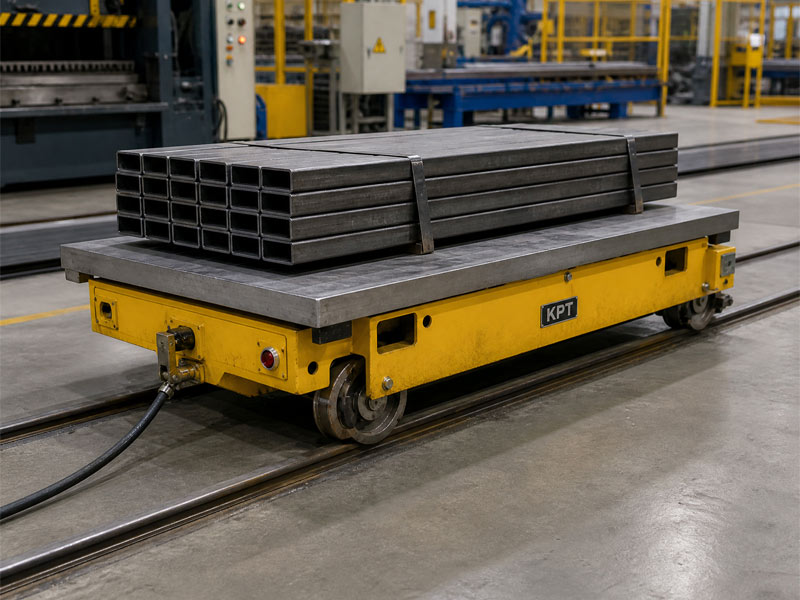

The KPT series cable-stayed rail transport vehicle is a rail-mounted transport device that achieves power supply by directly dragging a ground cable. Its working principle is extremely simple: one end of the cable is connected to a ground power source, and the other end is directly connected to the vehicle’s control system. As the flatcar reciprocates, the cable is dragged between the rails, providing a continuous power source for the AC motor.

Model	KPT
Rated Load Capacity (T)	5	10	20	30	50	80	100	150
Overall Dimensions (mm)	3500*2000	3600*2000	4000*2000	4500*2200	5500*2500	6000*2600	6500*2800	10000*3000
Overall Height (mm)	500	500	550	600	650	800	900	1200
Wheel Diameter (mm)	φ300	φ300	φ350	φ400	φ500	φ600	φ600	φ600
Maximum Wheel Pressure (KN)	25.8	42.6	77.7	110.4	174	278.4	343.8	265.2
Rail Inner Distance (mm)	1435	1435	1435	1435	1435	1800	2000	2000
Motor Power (Kw)	1.5	1.5	2.5	4	5.5	7.5	11	15
Wheel Track (mm)	2500	2600	2800	3200	4200	4700	4900	7000
Travel Length (m)	25	25	30	50	50	50	50	50
Number of Wheels	4							8
Ground Clearance (mm)	50-75
Travel Speed (m/min)	0-25
Operating Method	Wireless remote control + car handle
Safety Protection	Infrared human detection stop/sector scanning radar (optional)
Tabletop Requirements	Add rubber matting/V-shaped frame/table lifting/side-tilting/toolrack(non-standard customization)

Extremely high cost-effectiveness: By eliminating the need for batteries, reels, or complex insulated rails, the KPT series boasts the lowest cost among all powered railcars.

Unlimited operating time: Powered directly from the grid, it eliminates battery charging cycles and range anxiety, making it suitable for high-intensity work.

Ultra-low platform design: The interior space is highly utilized, eliminating the need for bulky battery packs and allowing for a very low overall height, facilitating the lifting of large and heavy workpieces.

Easy installation: No special requirements for rail laying (such as insulation treatment); ordinary rails are sufficient.

Extremely low maintenance costs: Aside from routine maintenance of the motor and reducer, almost no other consumables are required.

Short-distance inter-workshop material handling: Typically used for material transport between two workstations or workshops with a straight-line distance of less than 20 meters.

Machine tool/mold assembly: In mold workshops or machining workshops, it serves as a tool for quickly moving heavy molds and large castings next to machine tools.

Fixed-station circulating assembly line: In streamlined operations, it serves as a reciprocating transport node between fixed workstations.

Heavy component lifting assistance: Within the crane operating area, it supplements lateral ground handling, relieving the workload of overhead cranes.

Rated load (T)	1-150（T）
Rail inner distance (mm)	1200-2000
Motor power (kW)	0.8-15
Wheel track (mm)	1200-7000
Running length (m)	25-50
Ground clearance (mm)	50-75
Running speed (m/min)	0-25
Operating method	Wireless remote control + onboard handle
Safety protection	Infrared Person Detection Stop/Sector Scanning Radar
Tabletop requirements	Rubber Sheet/V-Shaped Frame/Table Lifting/Side Tilting/Tooling Rack

Towed Cable Rail Transfer Cart
