Omnidirectional Trackless Transfer Cart-Heavy Duty Transfer Cart & AGV/RGV Systems

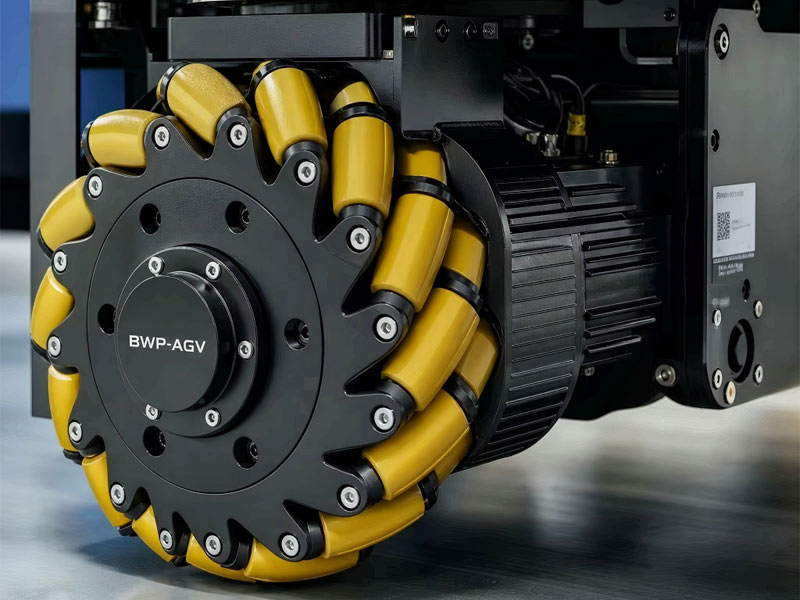

The BWP series is a highly flexible, steerable AGV that requires no fixed rails. Equipped with omnidirectional wheels, it can move forward, backward, sideways, and rotate 360 degrees in place, making it perfect for narrow spaces and dynamic factory layouts.

Product Videos

Model	AGV
Rated load capacity	2 Tons – 300 Tons
Impact load	130% of rated load
Turning method	360° omnidirectional steering (rotation on the spot)
Height	400mm – 900mm
Motor power	5.5kW × 2 or 7.5kW × 4
Braking method	Electromagnetic brake + hydraulic emergency brake
Operating speed	0 – 30m/min
Ground clearance	50mm
Operating method	Wireless joystick remote control / handle follow control / intelligent automatic navigation
Safety protection	Laser anti-collision sensor, 360° safety infrared, audible and visual alarm, mechanical obstacle avoidance
Platform requirements	Standard epoxy flooring, mud flooring or steel plate flooring

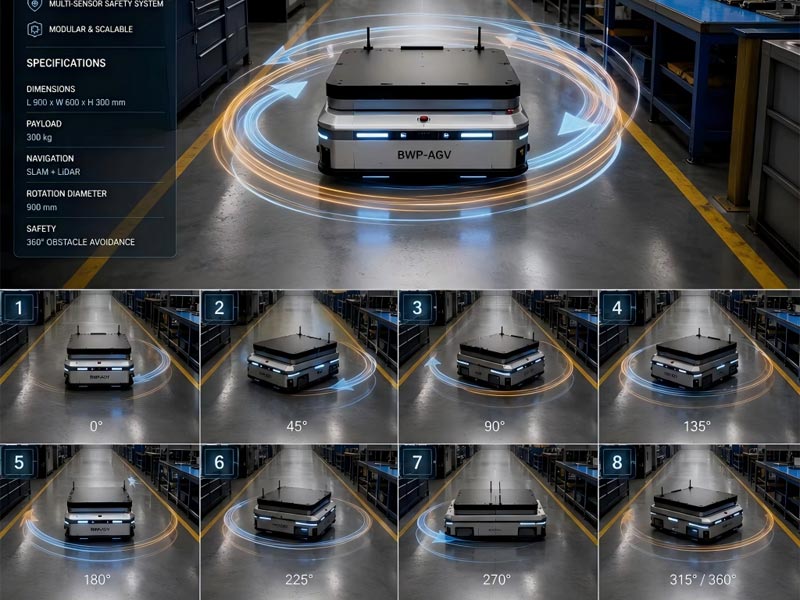

Trackless operation, omnidirectional movement: forward, backward, lateral, and rotation in place

Automatic transfer of pallets and heavy workpieces without the need for track laying

Laser/magnetic strip navigation, with both automatic and remote control modes

High-precision positioning, compatible with conveyors and tooling equipment

Integrates with WMS/MES, supporting multi-vehicle scheduling and 24-hour operation

Laser anti-collision and safety alarms, suitable for complex indoor environments

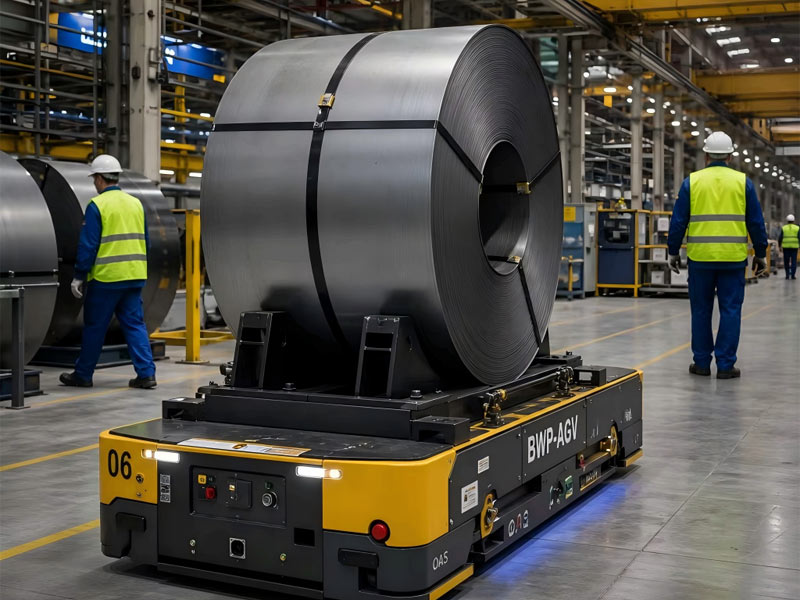

Heavy Industry Workshop: Handling of large molds, steel structures, and heavy workpieces

New Energy Factory: Pallet transfer of battery packs and modules

Automotive Manufacturing: Cross-station transport of body panels and tooling fixtures

Warehouse Logistics: Pallet turnover within warehouses, with flexible route adjustments

Equipment Retrofit Projects: Retrofitting old workshops where tracks cannot be laid

Cleanroom: Dust-free version for precision material transfer

Omnidirectional Trackless Transfer Cart
