Electric Tow Tractors / Tugs-Heavy Duty Transfer Cart & AGV/RGV Systems

Industrial electric tractor trucks are the main power source for indoor flatbed logistics, using batteries as their energy source. Equipped with a reliable braking and steering system, they are used to tow full trailers and material trolleys, and are controlled by a joystick or steering wheel. They are maneuverable, environmentally friendly, pollution-free, and have strong traction power, specifically designed for towing various flatbed trailers and logistics trains on smooth indoor or outdoor roads.

Product Videos

Parameter Items	Technical Specifications
Maximum traction power (N)	5000 – 30000 (Can tow 1 – 25T)
Driving speed (km/h)	0 – 8 (Full Load) / 0 – 15 (No Load)
Motor power (kW)	1.5 – 7.5 (High torque AC asynchronous motor)
Battery capacity (Ah)	24V/210Ah – 80V/400Ah (Lithium/Lead Acid)
control system	Imported industrial controllers (such as Curtis/Zapi)
Braking	Electromagnetic parking brake + regenerative braking
Drive form	Front-wheel drive / Rear-wheel drive (depending on model)
Turning radius (mm)	1200 – 1800 (extremely small radius)
Maximum gradient (%)	10 (unloaded) / 5 (fully loaded)
Car wheel material	High-elasticity rubber tires / polyurethane wheels
Hook type	Automatic hook / Automatic pin hook / Ball head hook
Operation mode	Walking/Standing/Sitting
Working time is long (h)	6 – 10 (depending on load)
Charging time (h)	2 – 8 (supports fast charging)
Weight (kg)	350 – 1500

High Torque Servo Control: Employs an advanced torque controller to provide substantial traction torque during low-speed starts, ensuring smooth starts under heavy loads.

Regenerative Braking Technology: Converts kinetic energy into electrical energy for recharging during deceleration or downhill driving, saving energy and increasing driving safety.

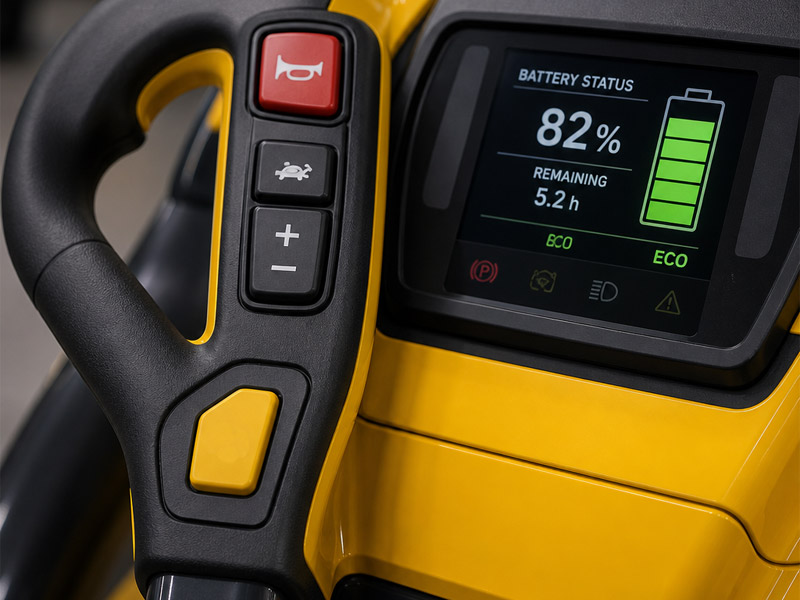

Multi-functional Ergonomic Handle: Integrates forward/reverse switch, horn, emergency stop, and scrambler crawl mode, allowing for easy one-handed control.

Intelligent Battery Management System (BMS): Monitors battery level and health in real time, featuring voltage protection and automatic power-off function.

Adjustable Towing Connection: The hook height and type can be quickly adjusted to suit different trailers, meeting diverse towing needs.

Stepless Variable Frequency Speed Control: Precisely adjustable driving speed with micro-motion alignment, facilitating precise connection with the trailer in confined spaces.

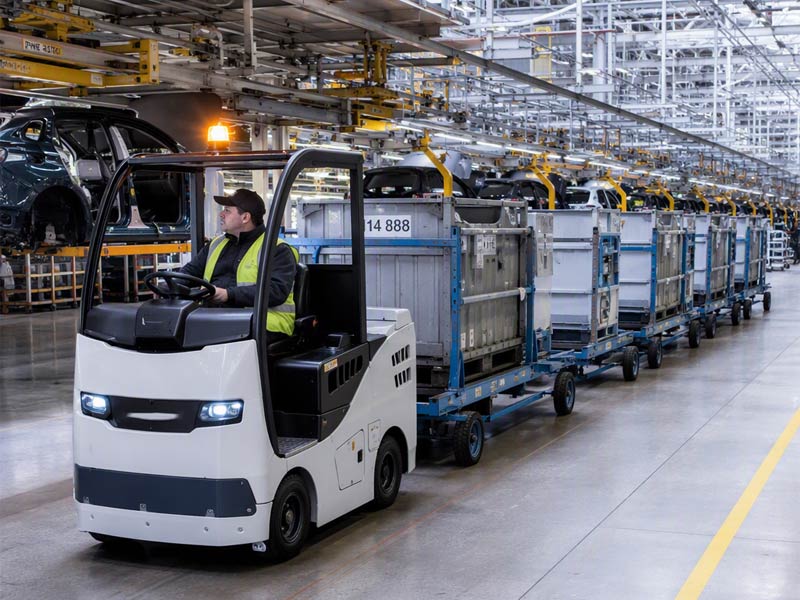

Power-driven cyclic traction of parts delivery trains within automotive OEMs.

Rapid transfer and tarmac shuttle of baggage trailers in airport baggage claim areas.

Electrified traction upgrade of multiple manual pallet trucks within modern logistics distribution centers.

Lightweight, pollution-free handling operations in dust-free truck rooms of electronics and food processing plants.

Torch transport of large equipment mobile trucks and medical supply trailers within medical institutions.

Centralized distribution of caged trucks within large supermarket or department store warehouses.
