Precast‑Concrete‑Specific Transfer Carts-Heavy Duty Transfer Cart & AGV/RGV Systems

Precast concrete specific transfer cart is a heavy-duty flatbed handling equipment customized for PC precast components. It features a super-large flat load-bearing platform with uniform stress, effectively avoiding deformation and component damage during heavy-load transportation.

Equipped with shock-absorbing and stable traveling structure, the cart realizes smooth start and stop, preventing concrete components from cracking and chipping. The trackless flexible walking design adapts to rough, dusty and outdoor factory sites.

With wireless remote control, anti-collision and emergency stop protection, it ensures safe and efficient operation. It is widely used for the transfer of precast wall panels, slabs, beams and stair components between production lines, curing rooms and storage yards, greatly improving PC factory turnover efficiency.

Product Videos

Parameter Items	Technical Specifications
Rated Load Capacity (T)	10 – 120
Tabletop Dimensions (L*W, mm)	8000 * 3500 (Extra-wide heavy-duty design)
Drive Torque (Nm)	1200 – 4500 (High torque start)
Ground Clearance (mm)	100 – 150 (Outdoor obstacle crossing ability)
Mounted Bracket Travel (mm)	0 – 500 (Hydraulically adjustable width)
Full Load Climbing Capacity (%)	10% (Suitable for outdoor ramps)
Operating Speed (m/min)	0 – 25
Wheel Diameter (mm)	Φ600 – Φ800 (Large size heavy-duty wheels)
Protection Rating	IP65 (Fully enclosed outdoor design)
Turning Radius (mm)	R6000 (Adjustable according to factory area)
Power Supply	High-capacity lead-acid battery / Industrial diesel engine (optional)
Structural Component Flaw Detection Standard	JB/T 6062 Grade 1 weld
Remote Control Distance (m)	≥ 100
Paint Thickness (μm)	≥ 120 (Outdoor anti-corrosion coating)

Extra-large, heavy-duty flat surface: Widened and lengthened flat platform, suitable for large-area heavy components such as precast slabs, beams, and wall panels, ensuring uniform load-bearing without deformation.

Shock-resistant and crack-resistant conveying: Flexible shock-absorbing walking structure, smooth start and stop at low speeds, preventing cracking, chipping, and damage to concrete components.

High site adaptability: Trackless free movement and on-the-spot turning, suitable for muddy, rough, and outdoor open-air sites in precast plants.

Easy and safe operation: Wireless remote control, anti-collision, emergency stop, and overload protection; simple operation and low failure rate.

Full-process workflow: Suitable for transfer between mold tables, curing kilns, storage yards, and loading stations, replacing forklifts and overhead cranes.

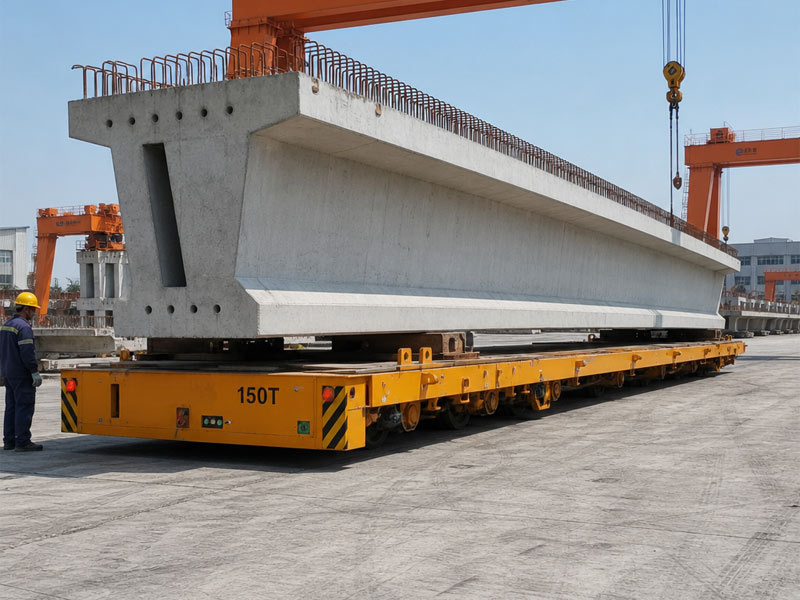

Prefabricated building plant: Transfer of prefabricated wall panels, composite slabs, prefabricated beams, and stair components between workshops.

PC component production line: Mold transfer, kiln curing, and sorting and relocation after kiln firing.

Prefabrication yard: Zoning and relocation of finished components.

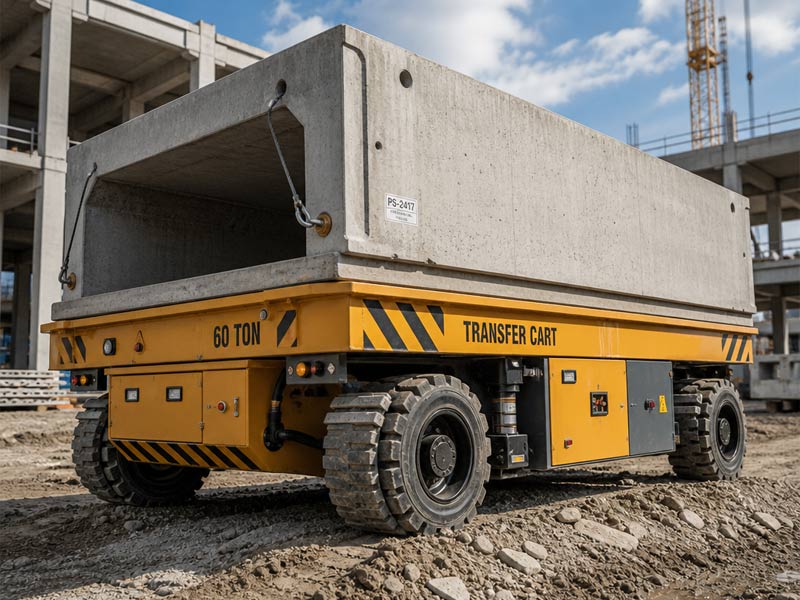

Municipal component factory: Heavy-duty handling of curb stones, prefabricated cover plates, and box culvert components.
