Logistical Tugger Train Trailers-Heavy Duty Transfer Cart & AGV/RGV Systems

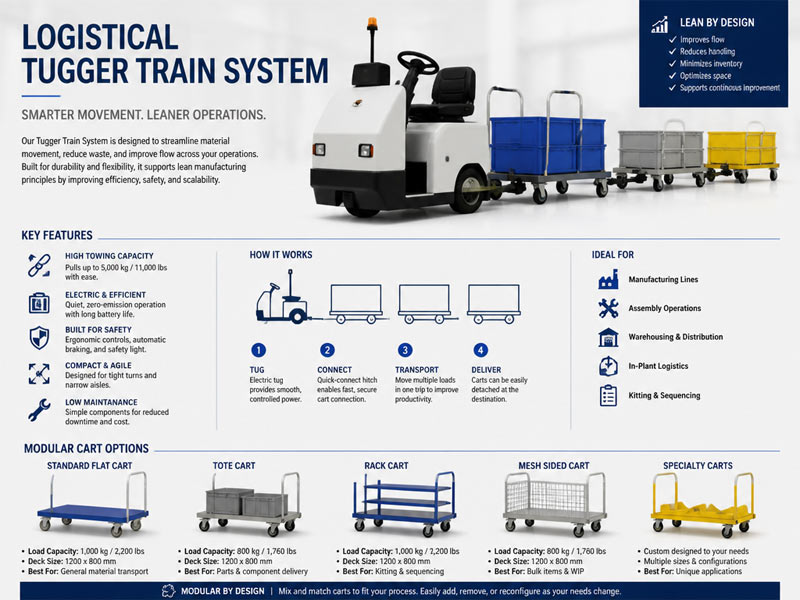

The logistics tractor-trailer system is a core piece of equipment in “lean logistics,” typically consisting of a tractor-trailer and multiple “U-shaped” or “C-shaped” frame trailers. It allows mobile dolly trailers loaded with goods to be directly pushed into and locked within the frames, enabling “shift-style” delivery without the need for forklifts. It features flexible steering, quick connection, and stable operation, making it suitable for cyclical material delivery within workshops and assembly lines.

Product Videos

Parameter Items	Technical Specifications
Frame load capacity (kg)	500 – 1500 (single frame)
Frame format	U-Frame (side-mounted) / C-Frame (side-mounted) / E-Frame (multi-layered)
Maximum length of the train (m)	≤ 15 (3-5 car bodies recommended)
Applicable trolley dimensions (mm)	1200 * 800 / 1200 * 1000 (Standard European/American)
Lifting type	Mechanical locking / Hydraulic lifting / Automatic lifting
Ground clearance (after lifting)	30 – 50 mm
Driving direction	One-way travel / Supports two-way traction
Car wheel material	Static polyurethane shock-absorbing wheels
Locking mechanism	Foot-operated one-button quick lock and unlock
security system	Frame positioning sensor + locking sound and light alert
Connection type	High-strength ball joint connecting rod (zero-backlash connection)
Operating noise (dB)	≤ 60 (Quiet color delivery)
Material	High-strength rectangular tube welded structure
Table processing	Industrial-grade powder coating
Delivery efficiency	Improves handling by over 300% compared to traditional forklifts.

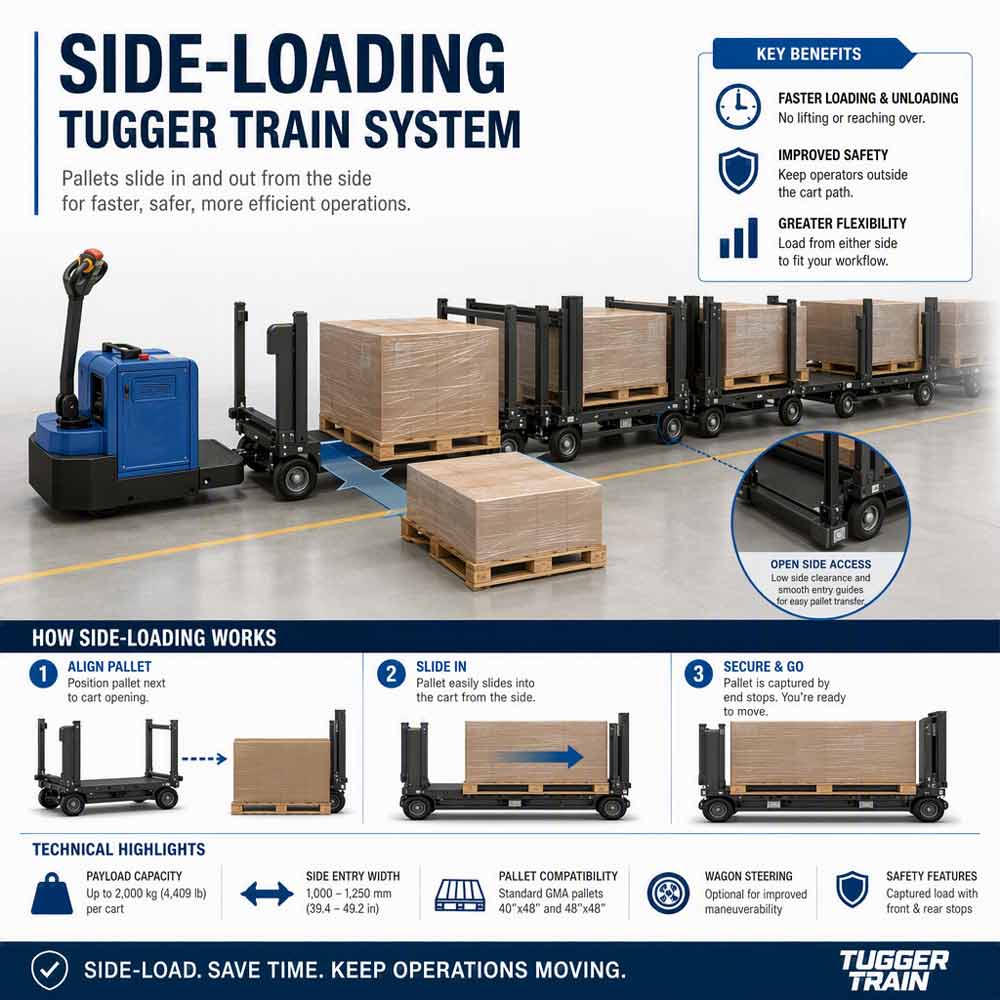

Rapid loading and unloading process: No lifting equipment is needed; simply push the wheeled minivan onto the trailer frame for sub-second loading and unloading.

Standard modular design: The frame can be adjusted to accommodate different minivan sizes, adapting to pallets, bins, cages, and other carriers.

Synchronous lifting technology: Optional electric or hydraulic synchronous lifting systems lift the entire loaded minivan off the ground for driving, eliminating wheel wear.

Zero-drift path tracking: Each carriage is equipped with a linked steering mechanism, ensuring the entire train perfectly tracks the preceding vehicle’s trajectory like a snake.

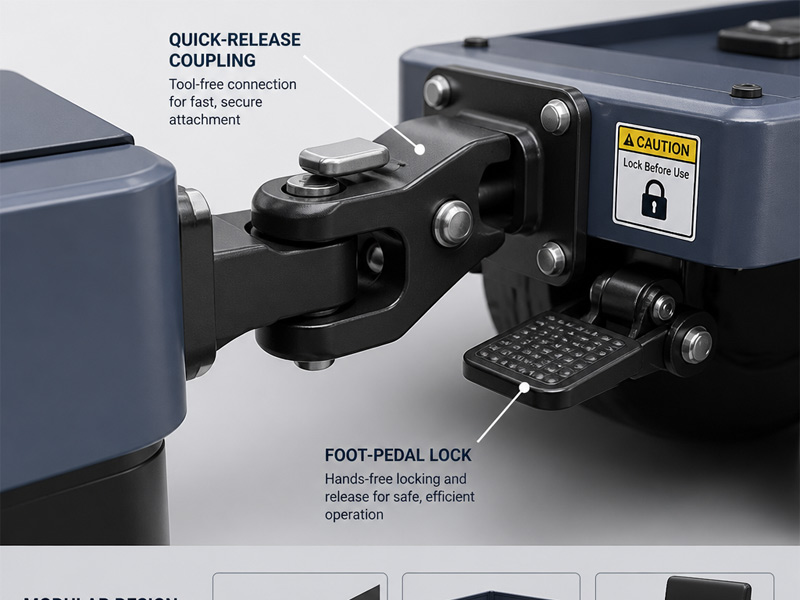

Foot-operated quick unlocking: A user-friendly interface allows operators to automatically eject and lock the heavily loaded minivan using a foot pedal.

Human-vehicle separation safety mechanism: The dangerous forklift operation is replaced by a low-speed, controllable traction train, which greatly reduces the risk of injury or death to personnel inside the vehicle.

“Milk Run” material recycling and replenishment system for automobile production lines.

Standardized material flow from the finished product sorting area to the shipping area in appliance manufacturing plants.

Just-in-Time (JIT) supply of empty containers and full cartons on the side of home appliance assembly lines.

Shift-based distribution of small packaging materials in cleanrooms of pharmaceutical companies.

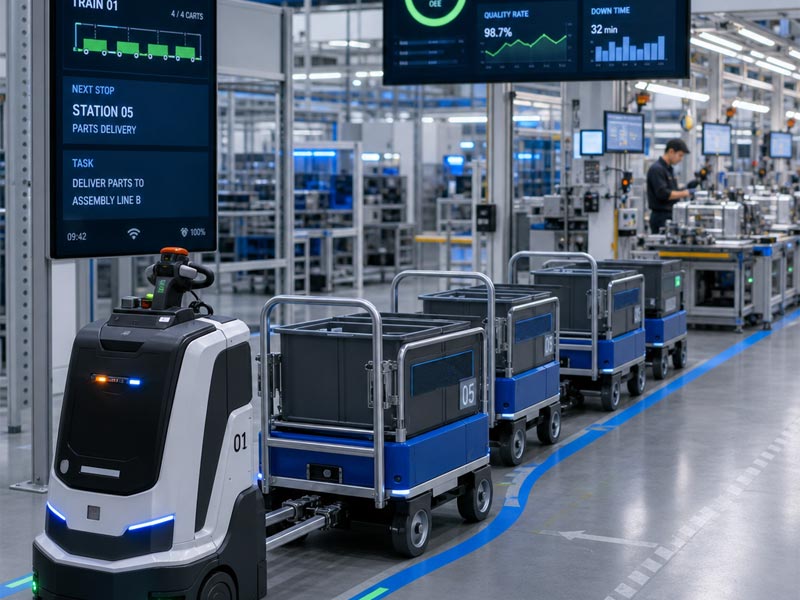

Multi-area collaborative wave sorting and connecting transportation within e-commerce warehouses.

Large-scale warehouse transfers and sorting line connections in the tobacco and apparel industries.
