Mold‑Specific Transfer Carts-Heavy Duty Transfer Cart & AGV/RGV Systems

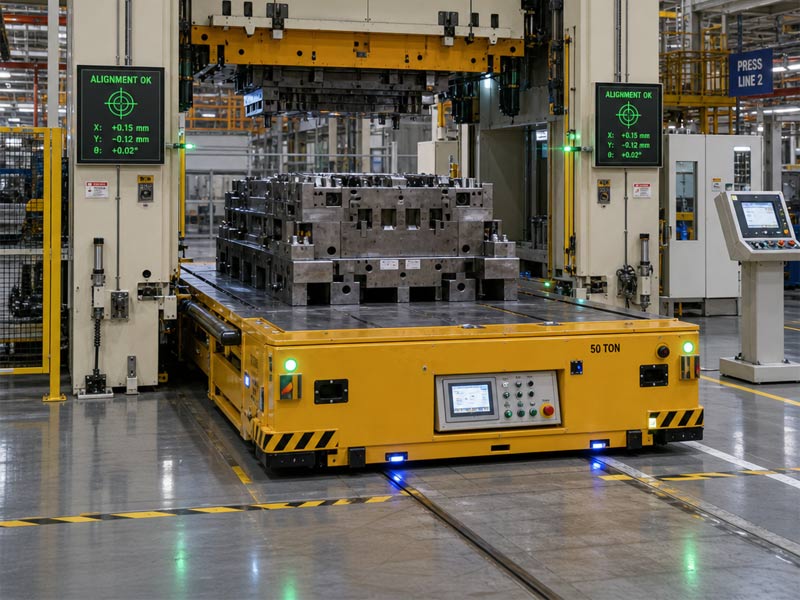

A mold transport vehicle is a specialized piece of equipment used for quick mold changes, commonly found in automobile stamping workshops. It enables precise docking of molds between the mold magazine and the press, significantly reducing equipment downtime.

Parameter Items	Technical Specifications
Rated Load Capacity (T)	2 – 200
Tabletop Dimensions (mm)	3000 * 2000 (Customized to mold size)
Minimum Tabletop Height (mm)	450 (Ultra-low chassis design)
Hydraulic Lifting Stroke (mm)	0 – 200 (Optional, for precision alignment)
Positioning Accuracy (mm)	±5 (Laser ranging and positioning)
Operating Speed (m/min)	0 – 20 (Smooth start and operation)
Steering Mode	Trackless omnidirectional steering (360-degree flexible movement)
Motor Type	DC brushless drive motor

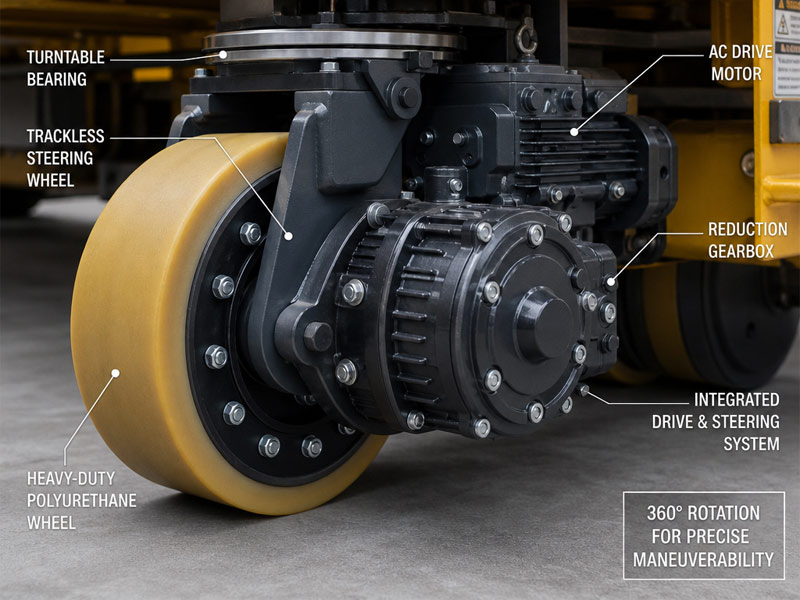

Wheelset Configuration	Steering wheel system + drive wheel set
Minimum Turning Radius (mm)	0 (Stationary rotation)
Safety Protection	All-around infrared obstacle avoidance + edge pressure strips
Full Load Gradeability (%)	≤ 5
Tabletop Material	High wear-resistant steel plate (optional rubber anti-slip mat)
Charging Method	Intelligent fast charging (charges to 80% in 2 hours)

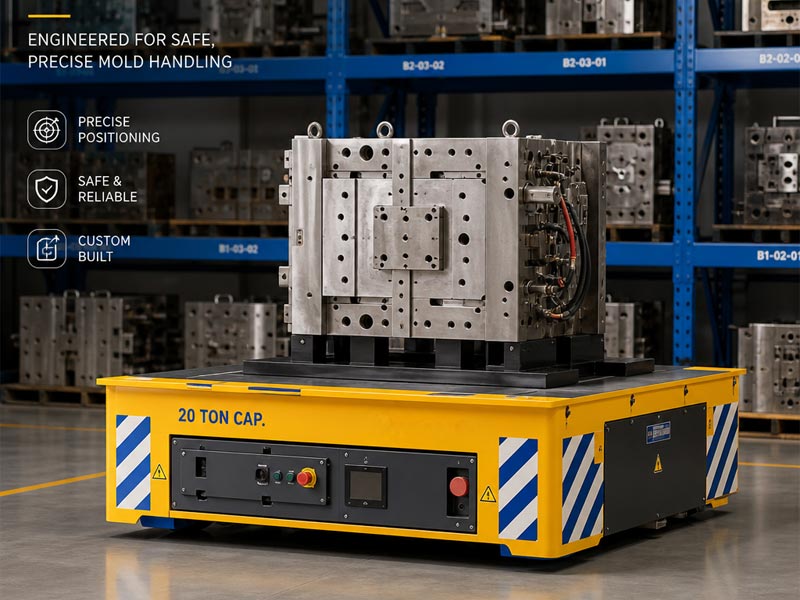

Heavy-duty mold support: A high-strength platform to support heavy injection and die-casting molds, preventing displacement and collisions.

Workshop transfer and conveying: Enables short-distance mold transport across workstations and workshops, replacing forklifts and overhead cranes.

Two travel options: Tracked fixed-route reciprocating operation; trackless design with on-the-spot turning and flexible ground movement.

Multiple safety protections: Remote control/panel operation, equipped with emergency stop, anti-collision, and overload protection; optional hydraulic lifting and positioning.

Production line integration: Connects to injection molding machines, die-casting machines, and mold warehouses, reducing manual lifting and improving mold changeover efficiency.

Injection Molding Plant: Transfer and change of injection molds between the mold storage and injection molding machines.

Die Casting Workshop: Flow, maintenance, and transportation of heavy-duty die casting molds within the workshop.

Stamping and Sheet Metal Plant: Transfer of large stamping molds and delivery of mold repair workers.

Mold Manufacturing Enterprise: New mold trial molding and handling of goods entering and leaving the warehouse.

Various Heavy Industry Workshops: Intra-plant transfer of large tooling, heavy-duty molds, and spare parts.
