Billet‑Specific Transfer Carts-Heavy Duty Transfer Cart & AGV/RGV Systems

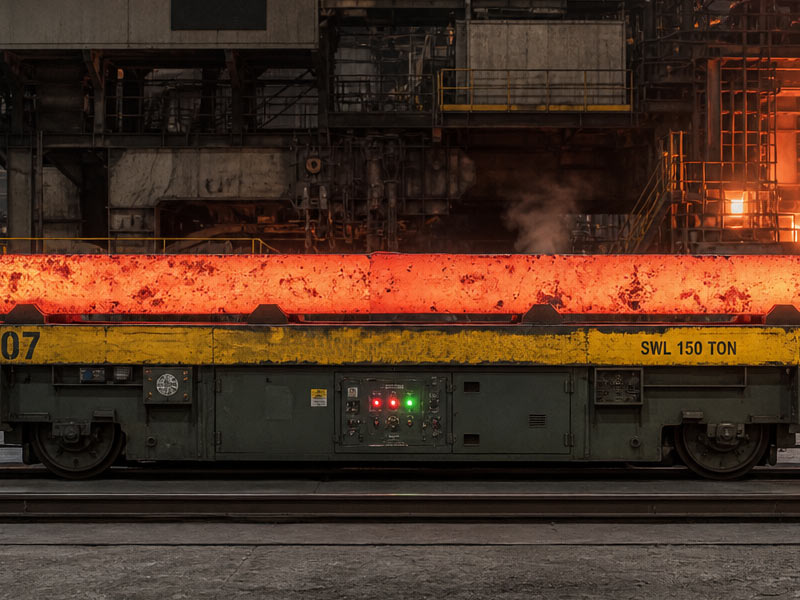

Billet-specific transfer cart is a heavy-duty, high-temperature resistant electric transport vehicle specially designed for handling steel billets, aluminum billets and various alloy blanks.
The whole vehicle adopts high-strength heat-resistant steel structure, which is anti-impact, dust-proof and durable for harsh high-temperature workshop environments. Equipped with professional limiting and stable bearing structure, it effectively prevents long billets from sliding and deviation during transportation.

Product Videos

Parameter Items	Technical Specifications
Rated Load Capacity (T)	5 – 150
Operating Ambient Temperature (°C)	200 – 800 (High-temperature operating area)

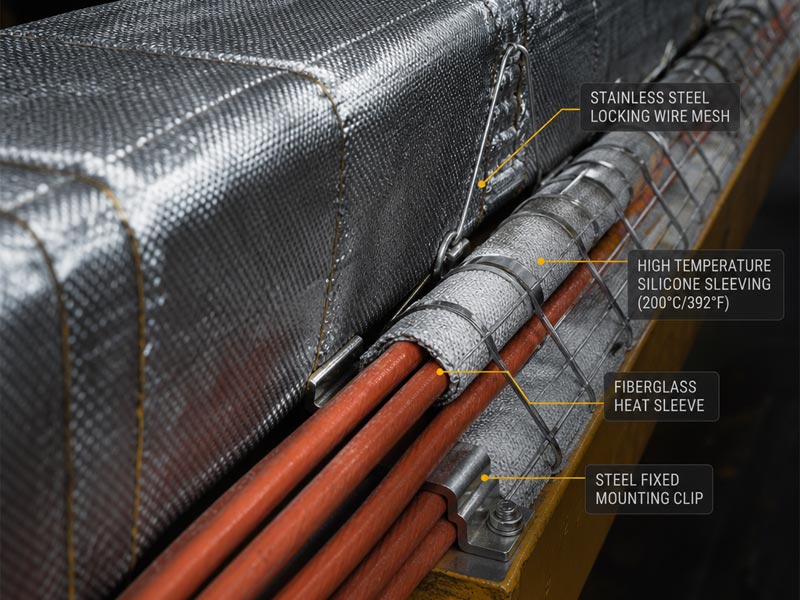

Insulation Layer Thickness (mm)	50 – 100 (Ceramic fiber + reflective layer)
Tabletop Material	12CrMoV heat-resistant alloy steel plate
Motor Insulation Class	H-class (High-temperature special motor)
Power Supply Method	High-temperature resistant sliding contact line/slide current collector
Operating Speed (m/min)	0 – 40 (High-efficiency transfer)
Continuous Operating Duration	24h all-weather continuous operation
Anti-collision System	High-temperature resistant mechanical anti-collision bar
Electrical Control Cabinet Protection Class	IP66 (Dustproof, high-temperature thermal conductivity)
Wheel Axle Lubrication Method	High-temperature resistant molybdenum disulfide centralized lubrication
Car Body Welding Standard	GB/T 1591 (High-strength low-alloy steel)
Starting Torque (Nm)	2.5 times the rated value
Self-Diagnosis	PLC monitoring of motor current and temperature status

High-Temperature, Heavy-Duty Conveying: Designed specifically for high-temperature steel, aluminum, and copper billets, featuring a heat-resistant body that can support large tonnage billets without deformation.

Anti-deviation and Stable Transportation: Utilizes a flat beam/limiting structure to prevent long billets from sliding or shifting, ensuring safe and stable transportation.

High-Strength and Durable: High-temperature resistant, dustproof, and impact-resistant, suitable for the harsh conditions of forging and hot rolling workshops.

Flexible and Controllable Operation: Supports fixed-track operation and trackless free movement; remote control operation ensures smooth start and stop.

Efficient Process Integration: Connects to heating furnaces, rolling mills, forging stations, and billet storage yards, enabling continuous billet flow.

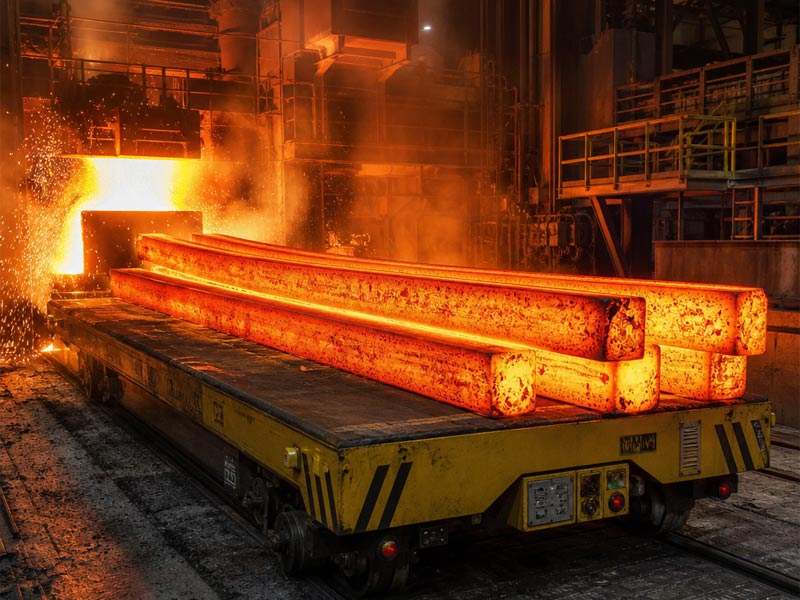

Hot rolling mill: Feeding, unloading, and cross-process transfer of high-temperature steel billets from the furnace area.

Forging plant: Handling of forging billets and bars at workstations.

Non-ferrous metal smelting plant: Short-distance transfer and storage of aluminum billets, copper billets, and alloy billets.

Profile and pipe production lines: Circulation of raw material billets between the production line and storage area.
