Turbine‑Specific Transfer Carts-Heavy Duty Transfer Cart & AGV/RGV Systems

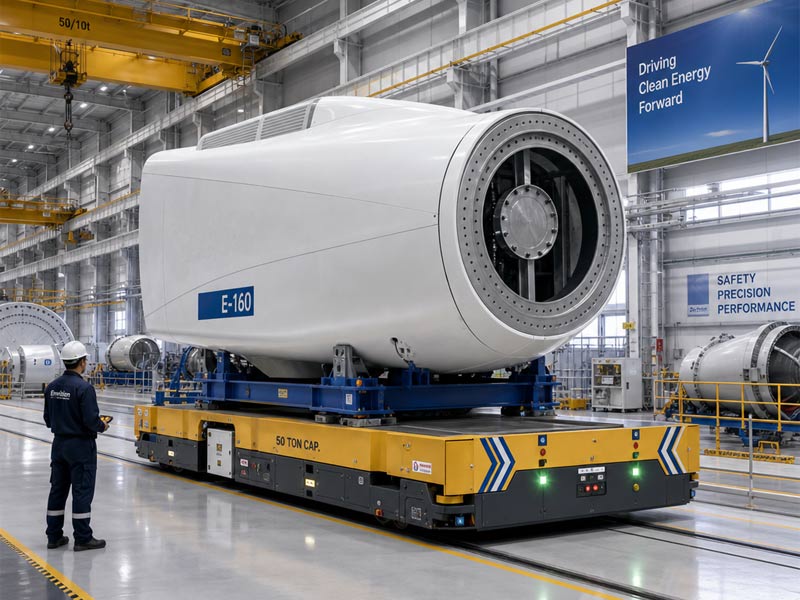

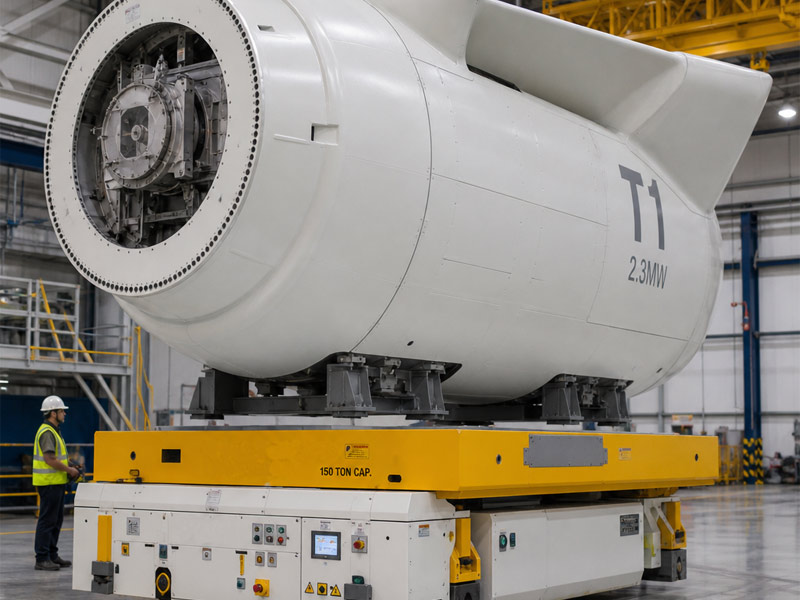

Turbine-Specific Transfer Carts are professional heavy-duty handling equipment tailor-made for the production, assembly, testing, and after-sales maintenance of wind turbines, steam turbines and power generation turbine core components. Different from ordinary industrial transfer trolleys, this series of transfer carts is fully optimized for the super-large size, ultra-heavy weight and high-precision anti-collision and anti-vibration transportation requirements of turbine equipment such as nacelles, turbine hubs, tower sections, blades and engine cores.

The equipment integrates heavy-load bearing structure, omnidirectional steering technology, intelligent precise control and stable power drive system, realizing safe, stable and efficient short-distance transfer and station switching of large turbine components in workshops, production lines and wind farm operation sites. It solves the pain points of difficult steering, easy component damage, low handling efficiency and high safety risks in traditional turbine heavy cargo transportation.

Parameter Items	Technical Specifications
Rated Load Capacity (T)	50 – 300
Tabletop Flatness (mm/m)	≤ 0.5 (Precision alignment platform)

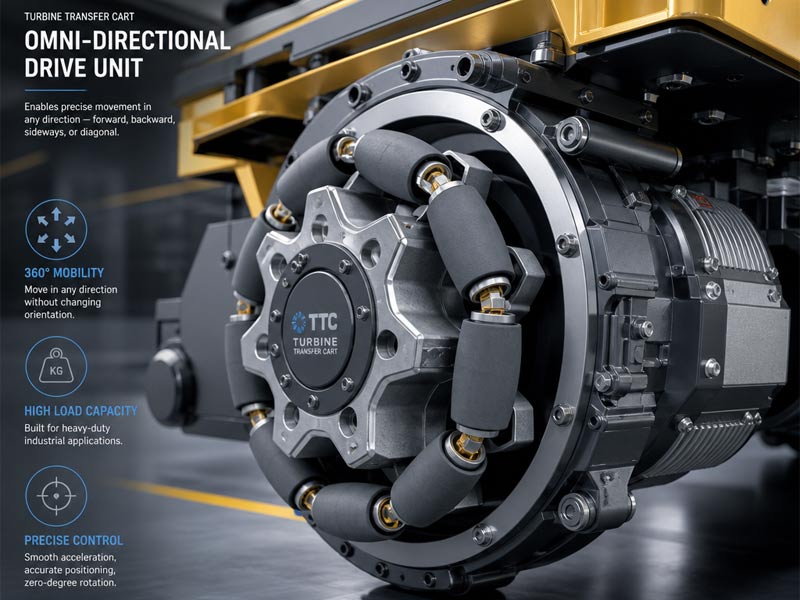

Steering Mode	Omnidirectional Mecanum wheels (lateral movement, diagonal movement, rotation)
Laser Scanning Accuracy (mm)	±2 (Precision assembly alignment)
Safety Radar Coverage (°)	360 (All-around laser obstacle avoidance)
Motor Drive	High-precision AC servo drive system
Minimum Operating Speed (m/min)	0.05 (Extremely low-speed micro-motion alignment)
Battery Type	Lithium iron phosphate power battery (supports rapid recharging)
Wheelset Shock Absorption Travel (mm)	±20 (Protecting internal electronic components)
Full Load Operating Noise (dB)	≤ 70
Wireless Synchronization Error (ms)	≤ 50
Maximum Traction Force (kN)	≥ 150
Operating System	Central controller based on embedded system
Maintenance Cycle (h)	2000

Extra-large, heavy-duty flat surface: Widened and lengthened flat platform, suitable for large-area heavy components such as precast slabs, beams, and wall panels, ensuring uniform load-bearing without deformation.

Shock-resistant and crack-resistant conveying: Flexible shock-absorbing walking structure, smooth start and stop at low speeds, preventing cracking, chipping, and damage to concrete components.

High site adaptability: Trackless free movement and on-the-spot turning, suitable for muddy, rough, and outdoor open-air sites in precast plants.

Easy and safe operation: Wireless remote control, anti-collision, emergency stop, and overload protection; simple operation and low failure rate.

Full-process workflow: Suitable for transfer between mold tables, curing kilns, storage yards, and loading stations, replacing forklifts and overhead cranes.

Prefabricated building plant: Transfer of prefabricated wall panels, composite slabs, prefabricated beams, and stair components between workshops.

PC component production line: Mold transfer, kiln curing, and sorting and relocation after kiln firing.

Prefabrication yard: Zoning and relocation of finished components.

Municipal component factory: Heavy-duty handling of curb stones, prefabricated cover plates, and box culvert components.
