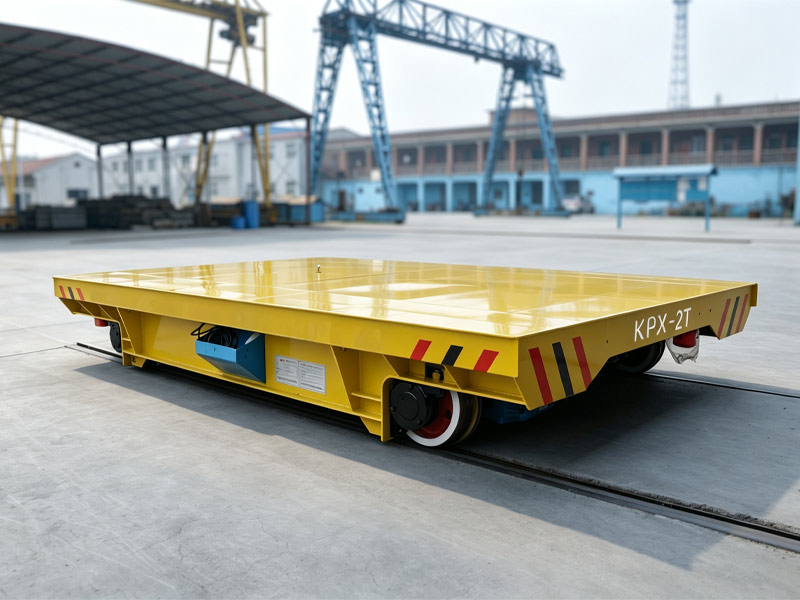

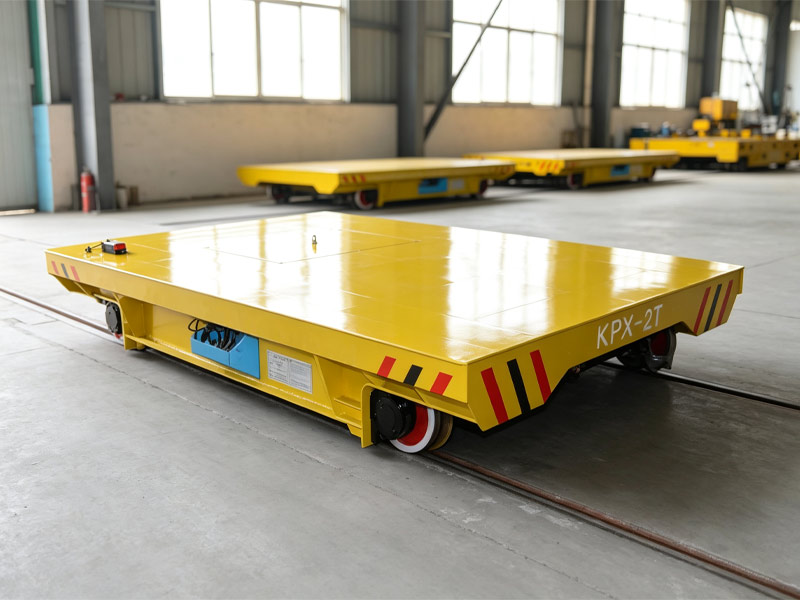

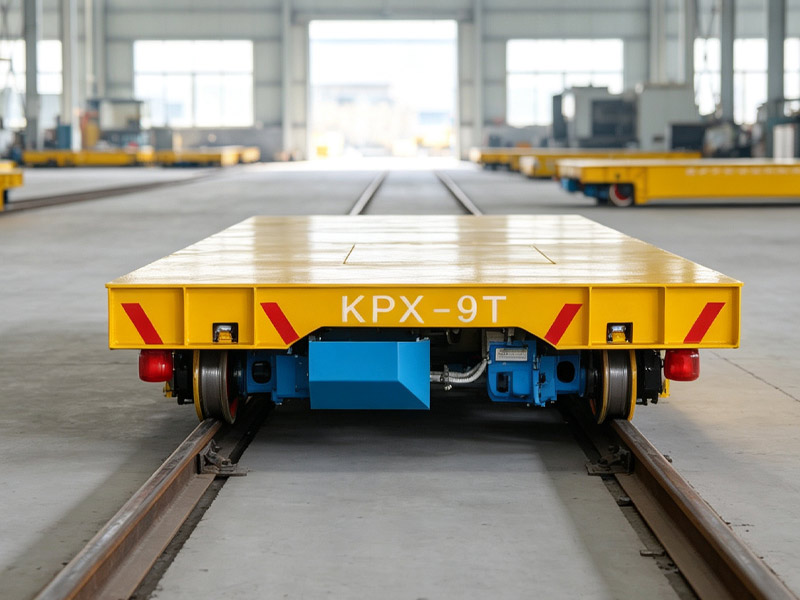

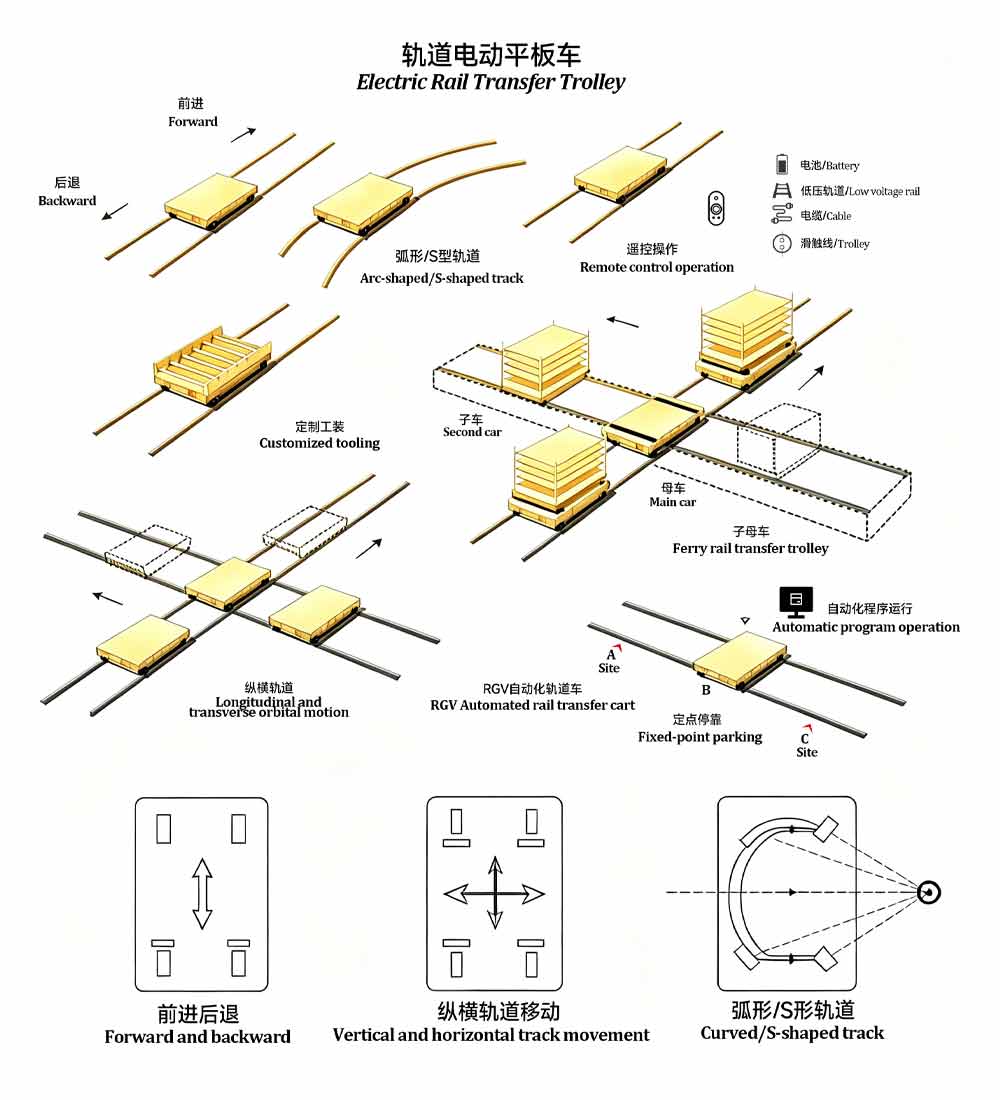

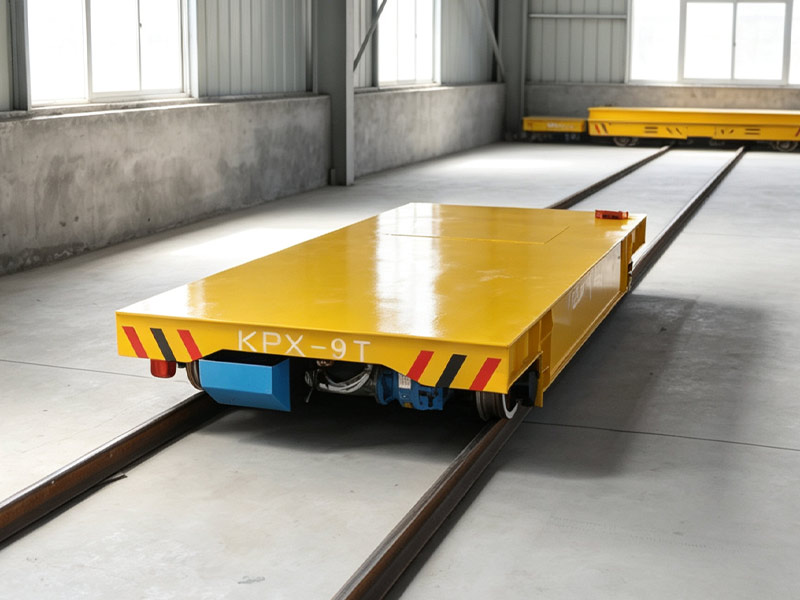

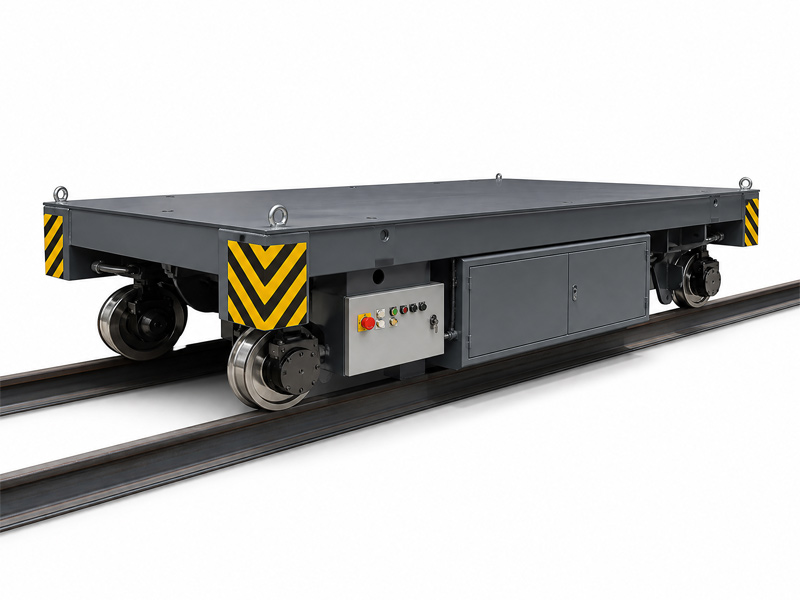

The Battery-Powered Rail Transport Vehicle (KPX) is powered by batteries or lithium batteries. The vehicle can move flexibly on the track and can move forward and backward via remote control. Through technical design, it can meet the operating requirements of S-shaped or C-shaped lines. The motor uses a soft-start motor, ensuring stable operation and adjustable speed. The vehicle is equipped with safety protection devices, a sound alarm during operation, and optional features such as scanning radar and pedestrian parking. Various tools can be mounted on the worktable, which can perform lifting, rolling, and rotating operations. The battery power supply voltage is safe and reliable, meeting energy-saving and environmental protection requirements, and equipped with an intelligent charging system. Advantages: Compared with other models, it has a lower and safer voltage, and can achieve automation without external cables.

Model	KPX
Load Capacity (T)	1-5	5-10	10-20	20-30	30-40	40-50	50-60	60-80	80-100	100-1000
Maximum Impact Load (T)	6	12	24	35	50	64	72	100	120	120-1300
Overall Dimensions (mm)	4000*2000						5000*2500			6000*3000
Overall Height (mm)	500	500	550	600	700	800	800	900	900	1000
Wheel Size (mm)	300	300	350	350	400	500	500	500	600	800
Wheel Pressure (kw)	26	45	65	110	140	180	200	230	350	560
Motor Power (kw)	1.5	2	2	3	4	5.5	6	8	10	22
Track Selection	P18		P24		P38/43		P50		QU100
Track Gauge (mm)	1430								2000

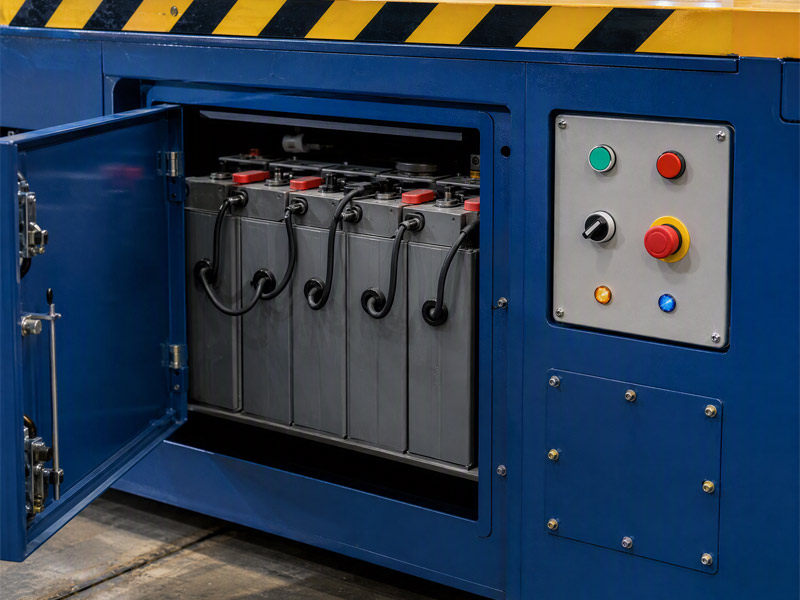

Battery Capacity (Ah)	180		200		260-300		300	400	500	600
Voltage	48		48		48		48	48	48	72
Braking Method	Electromagnetic brake
Operating Speed (m/min)	5-30
Operating Time (h)	4-5
Charging Time (h)	6-8
Operating Method	Wireless remote control + car handle
Battery Type	Hydrochloric acid battery / Free maintenance battery / Lithium battery (optional)
Safety Protection	Infrared human detection stop/sector scanning radar (optional)
Tabletop Requirements	Add rubber matting/V-shaped frame/table lifting/side-tilting/toolrack(non-standard customization)

Unlimited Running Distance ：No need for cables; ideal for long-distance transport and curved or S-shaped rail systems.

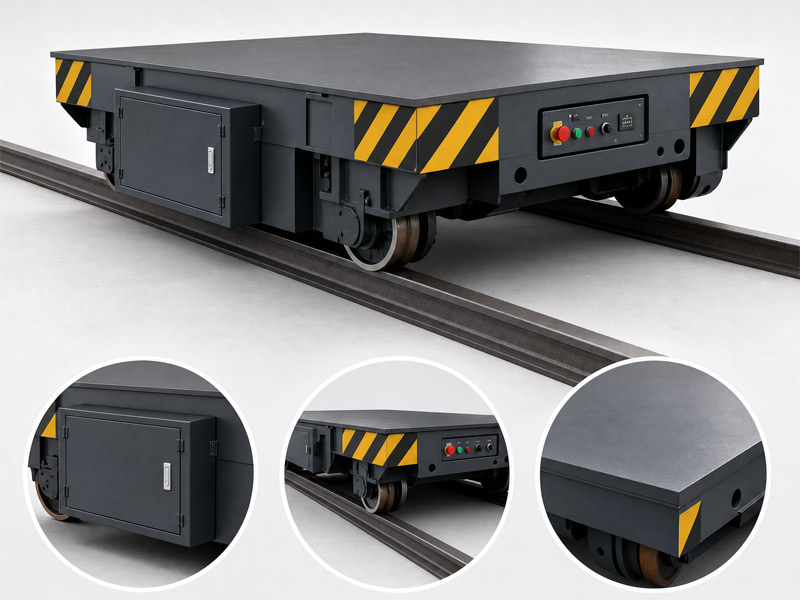

High Safety Standards：Equipped with laser obstacle sensors, emergency stop buttons, and audible/visual alarms to ensure worker safety：

Smooth Operation：Features variable frequency drive (VFD) for soft start and soft stop, preventing load shifting or impact.

Customizable Deck：Table size and shape can be customized with V-frames, rollers, or lifting platforms based on your specific load requirements.

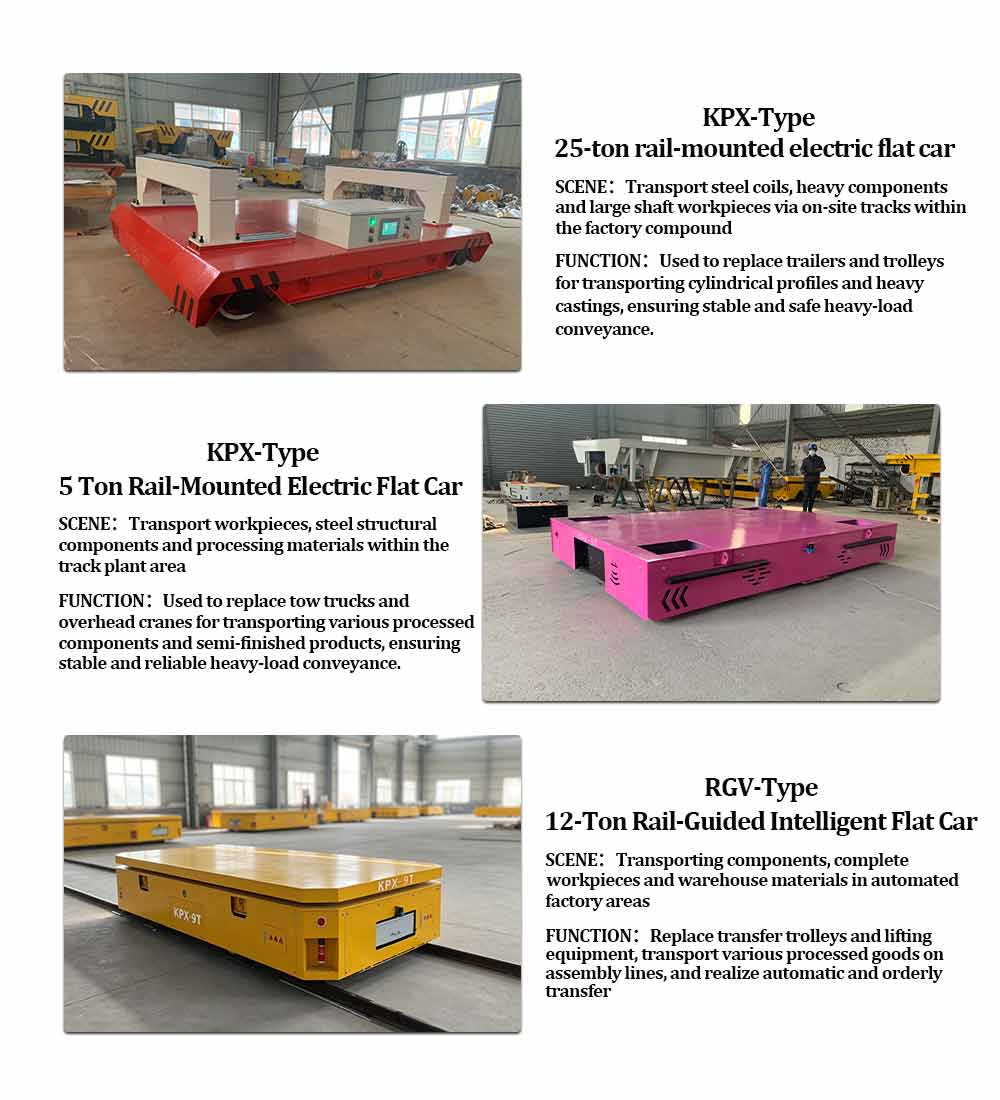

Steel Metallurgy：Transporting steel coils, billets, aluminum coils, and large molds.

Heavy Machinery Manufacturing：Transferring heavy components between workshops or assembly stations.

Mold & Die： Moving heavy injection molds between storage and pressing areas.

Shipbuilding：Handling large hull sections and heavy components.

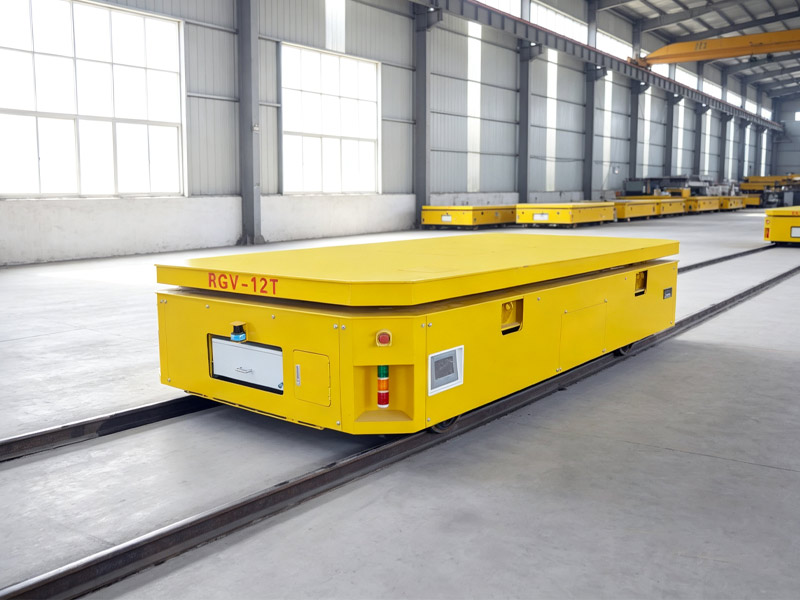

Warehouse Logistics：Automated inter-bay transfer for heavy inventory.

Load Capacity	1-1000 (T)
Maximum Impact Load	6-1300 (T)
Battery Capacity	180-600 (Ah)
Operating Speed	5-30 (m/min)
Track Gauge	1430/2000 (mm)
Operation Method	Wireless Remote Control + Onboard Handle
Battery Type	Hydrochloric Acid Battery/Lithium Battery
Safety Protection	Infrared Person Detection Stop/Sector Scanning Radar
Table Requirements	Rubber Sheet/V-Shaped Frame/Table Lifting/Side Tilting/Tooling Rack
Customization	Custom production available, including additional components, etc.
