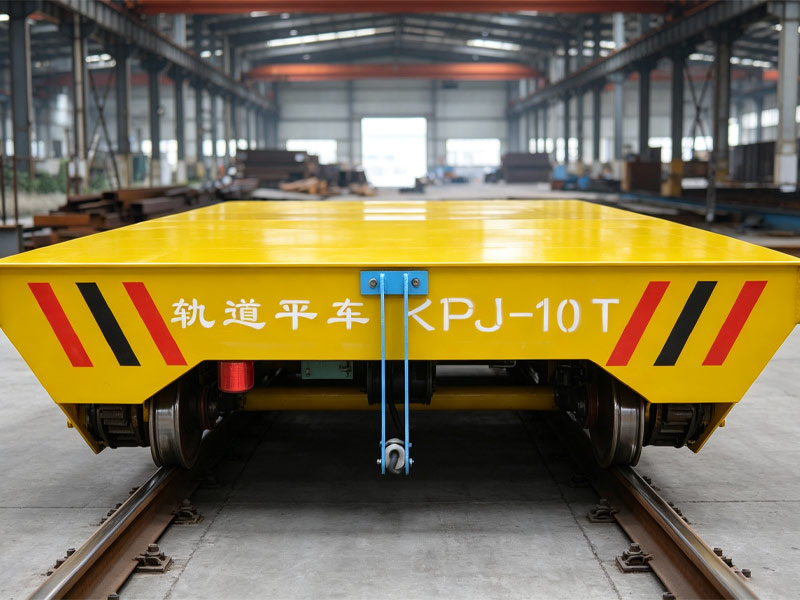

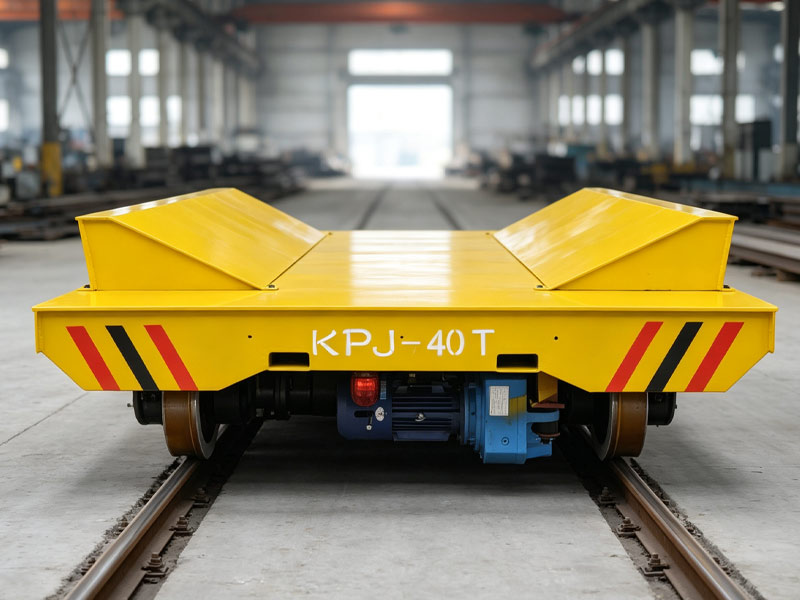

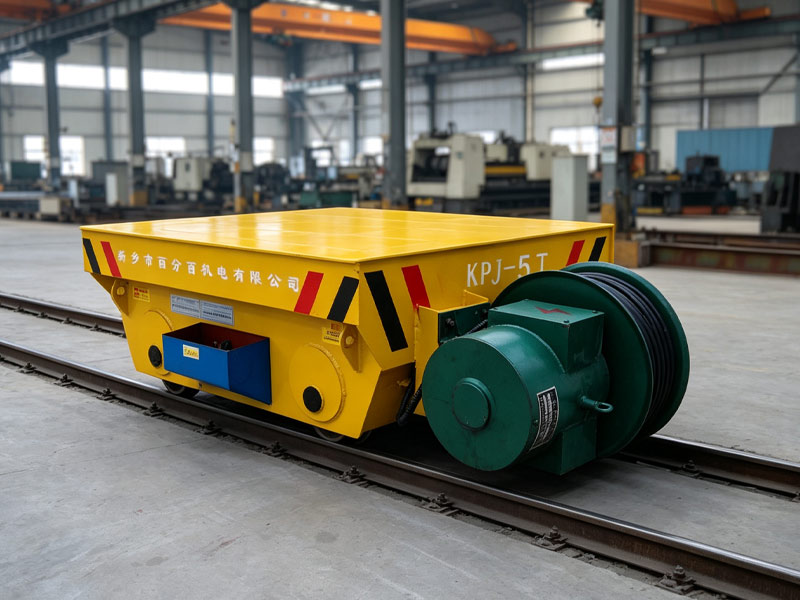

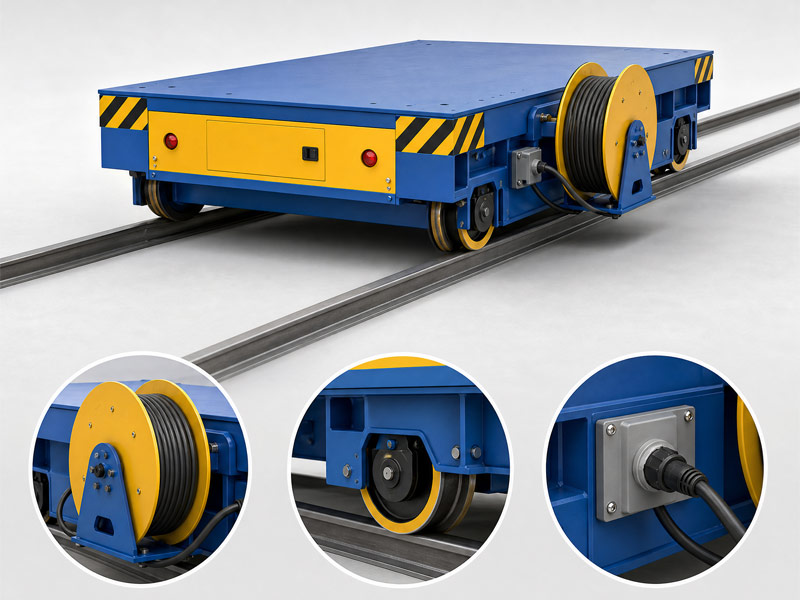

The cable-powered railcar (KPJ) is directly powered by 380V AC. An AC motor drives the trolley, which is controlled forward and backward via remote control. Different cable reel devices are equipped depending on the travel distance. For travel distances under 15 meters, a cable chain is placed on one side of the trolley, or the cable is placed directly under the trolley. For longer travel distances, a suitable cable reel is required. Advantages: convenient power supply, can operate 24/7, and inexpensive.

Model	KPJ
Load Capacity (T)	1-5	5-10	10-20	20-30	30-40	40-50	50-60	60-80	80-100	100-1000
Maximum Impact Load (T)	6	12	24	35	50	64	72	100	120	120-1300
Overall Dimensions (mm)	4000*2000						5000*2500			6000*3000
Overall Height (mm)	400	450	500	550	600	700	800	900	900	1000
Wheel Size (mm)	300	300	350	350	400	500	500	500	600	800
Wheel Pressure (kN)	26	45	65	110	140	180	200	230	350	560
Motor Power (kW)	1.5	1.5	2.2	3.7	5.5	5.5	7.5	11	15	22
Track Selection	P18		P24		P38/43		P50		QU100
Track Gauge (mm)	1430								2000
Cable Reel-in Method	Cable reel/drag chain
Operating Speed (m/min)	5-30
Ground Clearance (mm)	50-100
Operating Time	24 hours a day
Operating Method	Wireless remote control + car handle
Safety Protection	Infrared human detection stop/sector scanning radar (optional)
Tabletop Requirements	Add rubber matting/V-shaped frame/table lifting/side-tilting/toolrack(non-standard customization)

Unlimited Continuous Operation: Compared to battery power, it is not limited by working hours and can operate 24 hours a day without interruption, making it suitable for high-frequency usage scenarios.

High Load Capacity: The vehicle body typically adopts a box girder structure, with a very wide load range, from 1 ton to 1000 tons, and can be customized, with strong resistance to deformation.

High Cost-Effectiveness: Its power supply system structure is relatively simple, resulting in lower initial investment and subsequent maintenance costs.

Environmental Adaptability: It has low requirements for track laying, and because it eliminates the need for a battery box, the vehicle height can be made lower, facilitating the loading of goods with a high center of gravity.

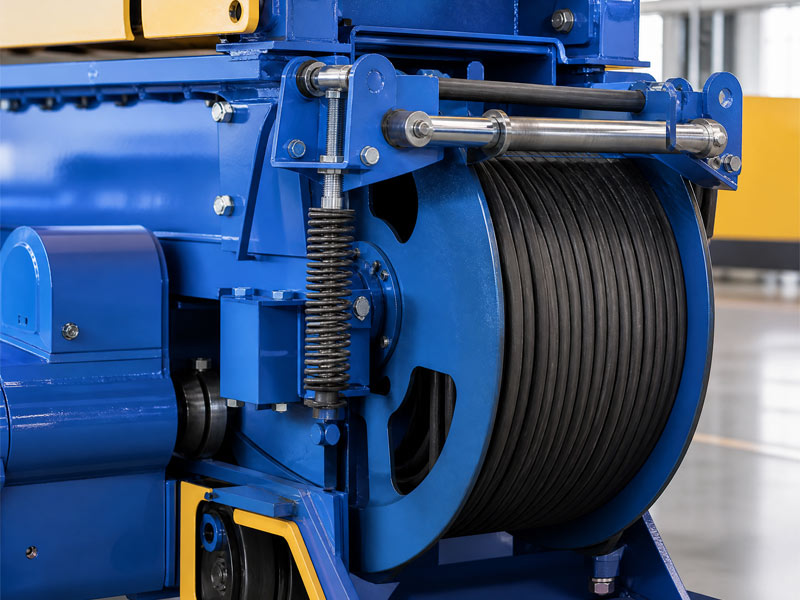

Safety Protection: Equipped with a winding synchronization device and overload protection, it can be equipped with audible and visual alarms, infrared anti-collision devices, and limit switches to ensure operational safety.

Metallurgy and Casting: Transfer of molten iron and mold handling between workshops in high-temperature environments.

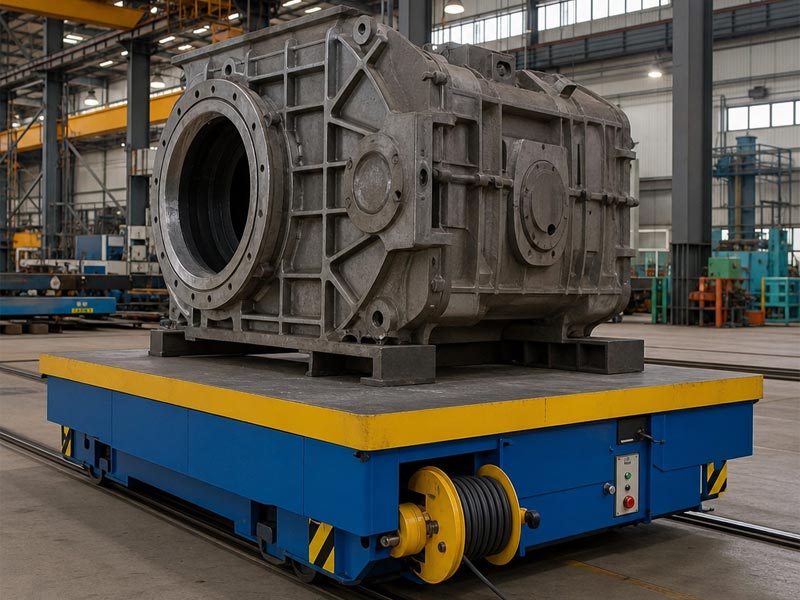

Heavy Machinery Manufacturing: Movement of large steel structures, pressure vessels, and wind power components between workstations.

Ports and Logistics: Rail transport of heavy goods within docks and warehouses.

Shipbuilding: Assembly and relocation of ship sections, large propellers, and other components.

Load Capacity	1-1000 (T)
Maximum Impact Load	6-1300 (T)
Operating Speed	5-30 (m/min)
Track Gauge	1430/2000 (mm)
Motor Power	1.5-22 (kw)
Operating Time	24 hours a day
Operation Method	Wireless remote control + onboard handle
Safety Protection	Infrared Person Detection Stop/Sector Scanning Radar
Table Requirements	Rubber Sheet/V-Shaped Frame/Table Lifting/Side Tilting/Tooling Rack
Customization	Custom production available, including additional components, etc.
